450 MODEL - Conveyor Belt Flow Wrap Machine
Conveyor Belt Flow Wrap Machine (450 Model) is a high-performance packaging solution designed for fully automatic wrapping of solid, semi-solid, and irregular-shaped products. Equipped with advanced 3-servo motor technology and a PLC-based HMI control system, the machine ensures precise bag length setting, consistent sealing, and high-speed output, while minimizing film wastage.
This versatile system is widely used across food, bakery, confectionery, pharmaceutical, cosmetic, and industrial sectors. It is ideal for packaging a wide variety of products, including Protein Bars, Chocolate, Cream Rolls, Cookies, Cream Buns, Soap, Bakery Items, Candy Bars, Biscuits, Cakes, Wafers, Chewing Gum, Energy Bars, Bread, Buns, Noodles, Instant Food Packs, Khakra, Rusks, Doughnuts, Muffins, Pastries, Tortillas, Frozen Parathas, Butter, Cheese Slices, Paneer Blocks, Ice-Cream Bars, Frozen Snacks, Ready-to-Eat Meals, Tablets in strips, Medical Devices, Syringes, Bandages, Masks, Gloves, Surgical Items, Soaps, Shampoo Sachets, Wet Wipes, Cosmetic Bars, Combs, Razors, Stationery Items, Hardware (nuts, bolts, screws), Toys, Batteries, Electrical Accessories, and Small Spare Parts.

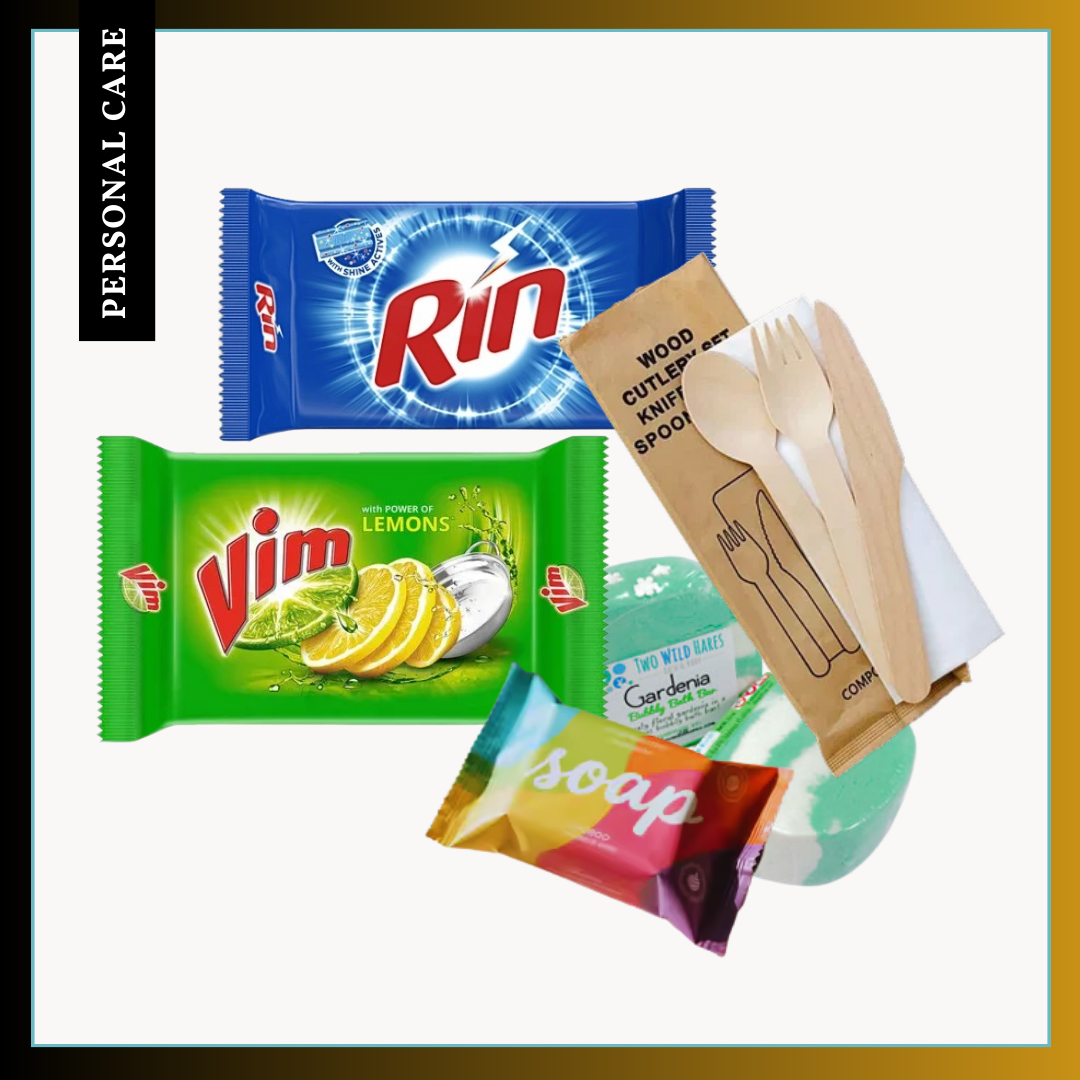

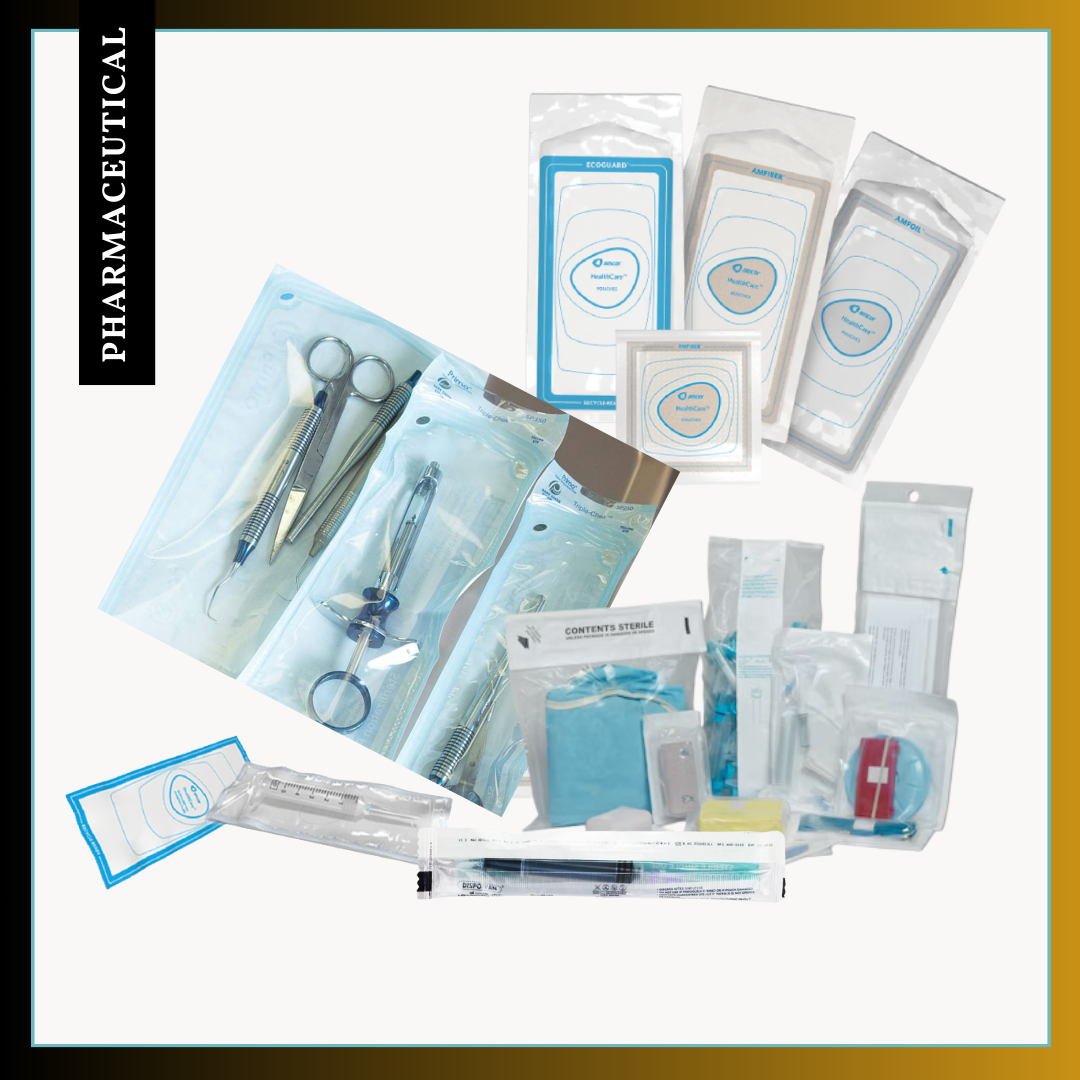

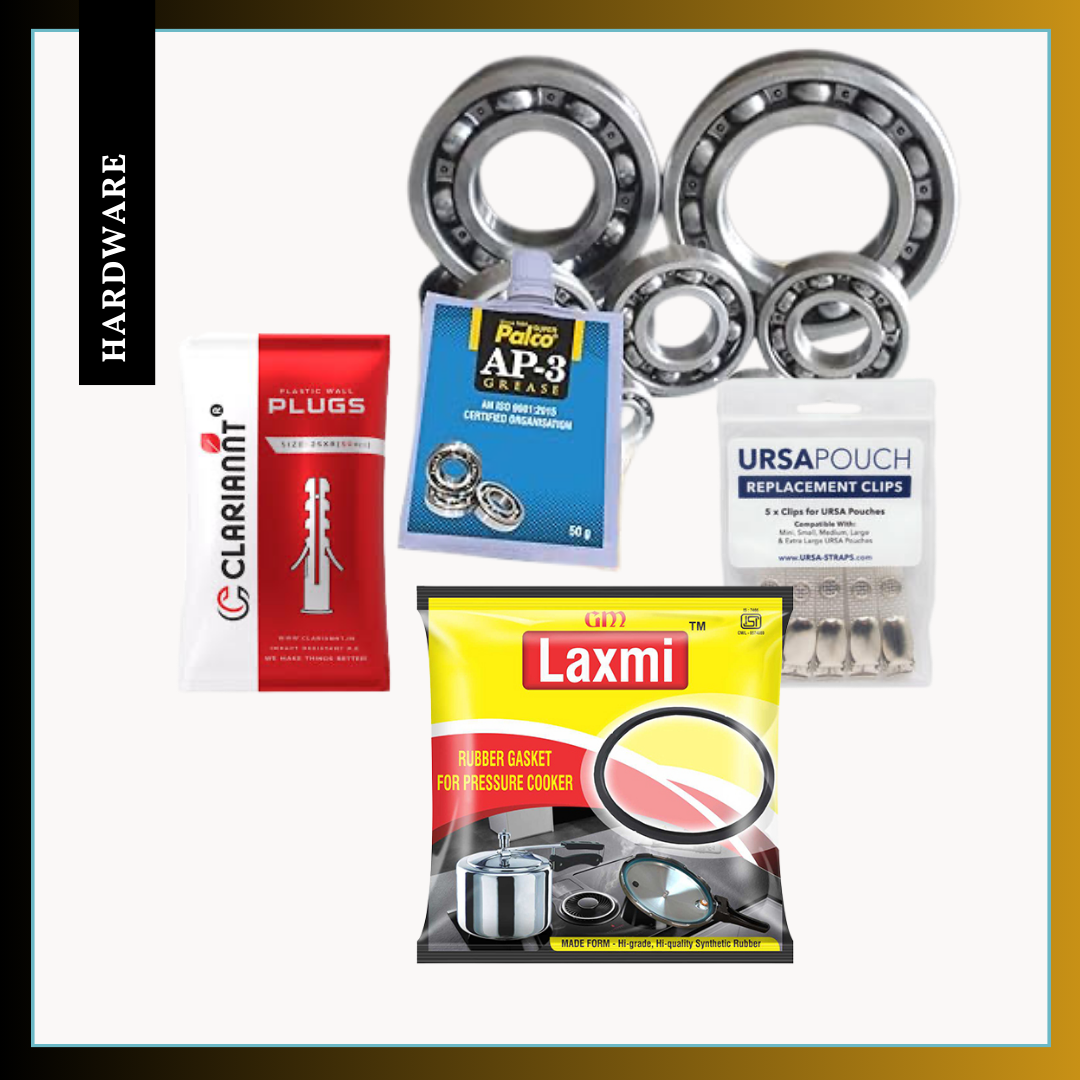

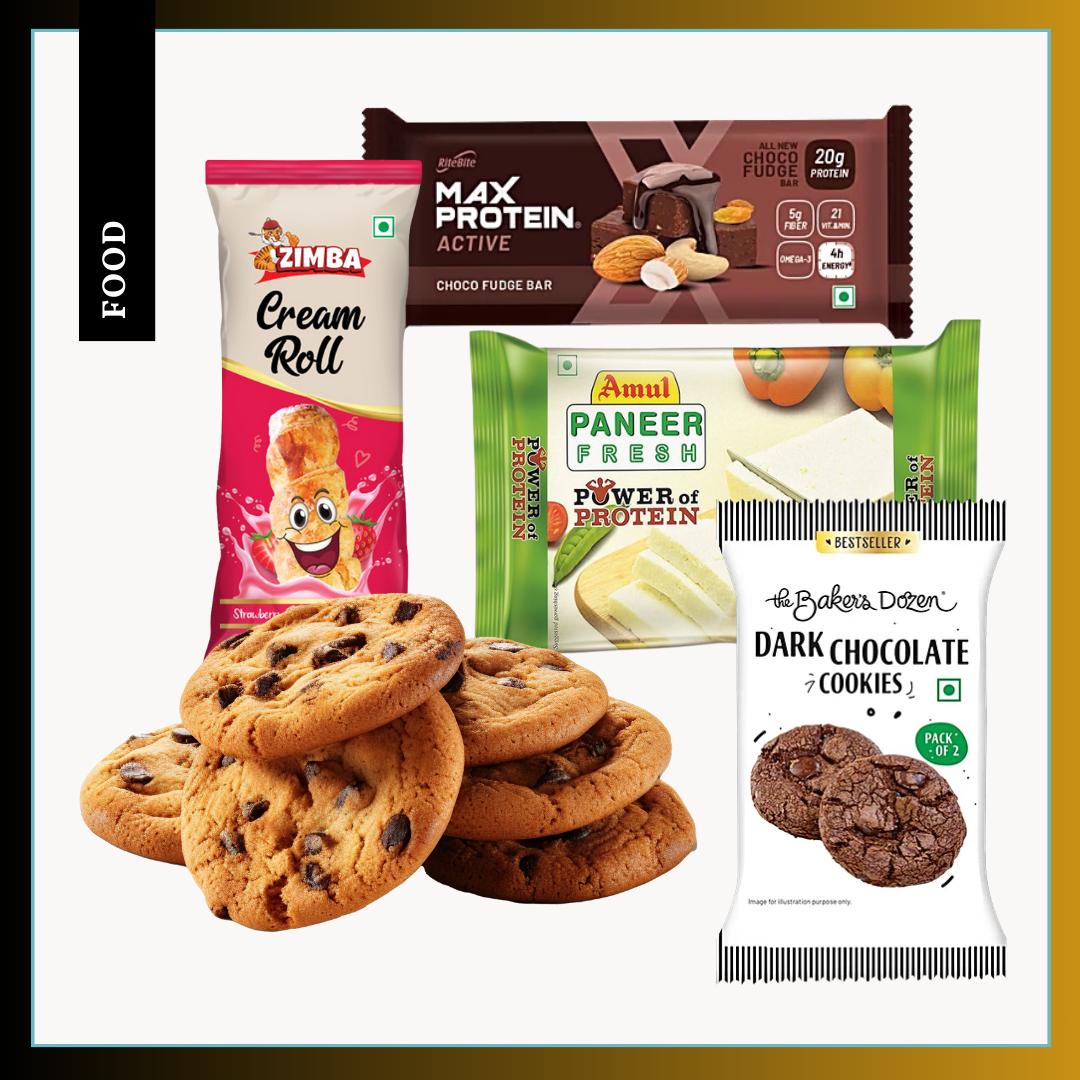

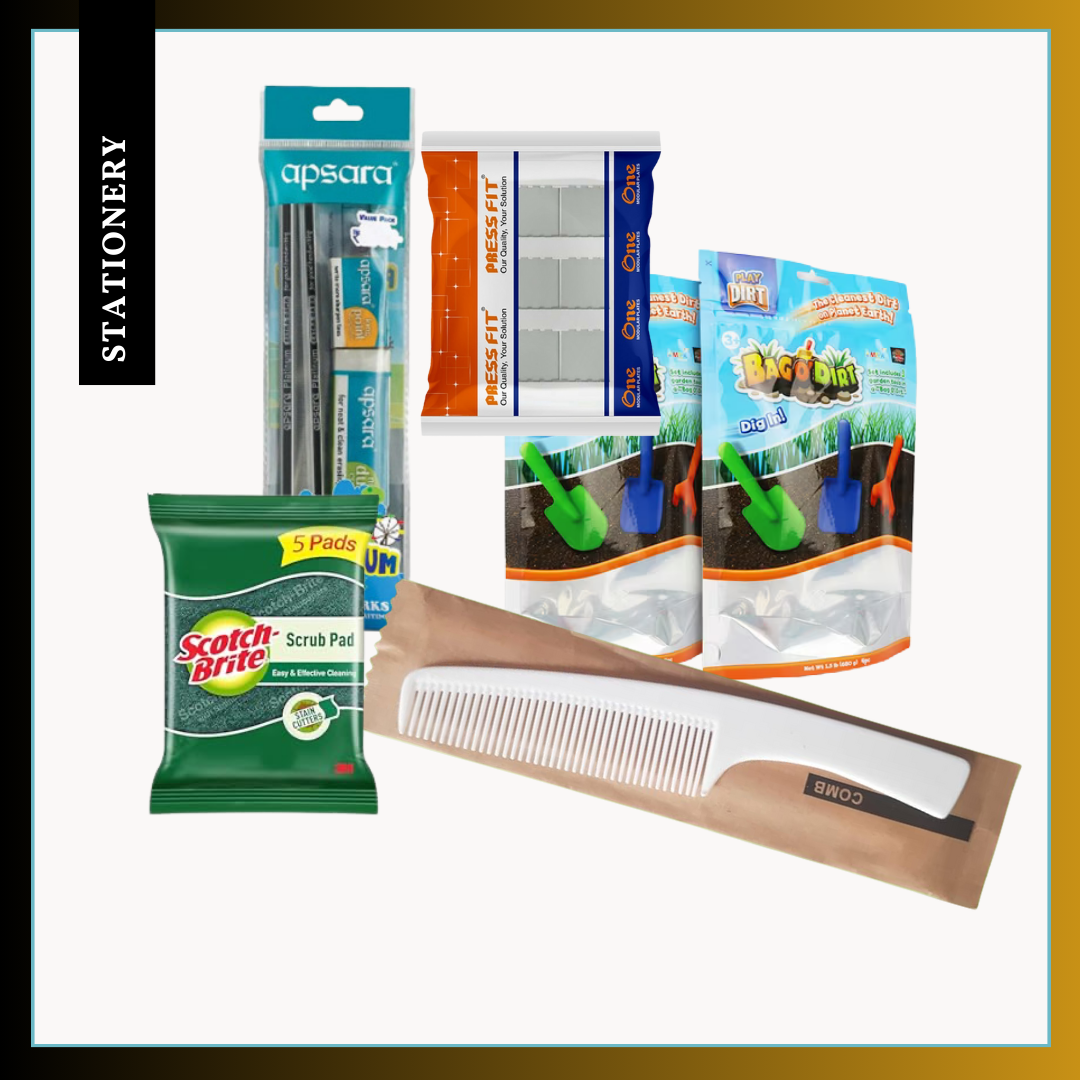

Product Range
Key Features
- Advanced 3-Servo Drive System: Ensures smooth, precise, and high-speed operation
- PLC with Touchscreen HMI: Easy operation, quick parameter setting, and real-time monitoring
- Self-Diagnosis System: Sensor-based failure detection with error display for quick troubleshooting
- High-Sensitivity Photoelectric Sensor: Ensures accurate sealing and cutting with minimal film wastage
- PID Temperature Control: Independent control system for stable sealing across different packing materials
- Hygienic & Versatile Design: Suitable for food, pharma, cosmetic, and industrial applications
- Energy-Efficient & Reliable: Continuous operation with minimal downtime
- Flexible Film Handling: Supports laminated, heat-sealable plastic films
- Optimized Cutting System: Sharp, durable blades for precise sealing and clean cutting
- Compact & Robust Structure: Space-saving design with durable construction for long service life
Nitrogen gas flushing unit (for extended shelf life)
Hole punching unit
TTO for batch/date printing
Gusseting unit
Fast-change film roll unit
D-Cut option
Technical Specifications
| Model | 450 Servo Flow Wrap Machine |
| Film Width | Up to 420 mm |
| Film Roll Diameter | Up to 450 mm |
| Pouch Width | 50 mm – 280 mm |
| Product Height | Up to 52 mm |
| Blade Size | 65 mm – 280 mm |
| Speed | 70 – 120 pouches/min (depending on product & film) |
| Electric Power | 220V, 50–60 Hz, 2.4 KW |
| Machine Size (L × W × H) | 3750 × 835 × 1565 mm (Approx.) |
| Machine Weight | ~380 kg |
