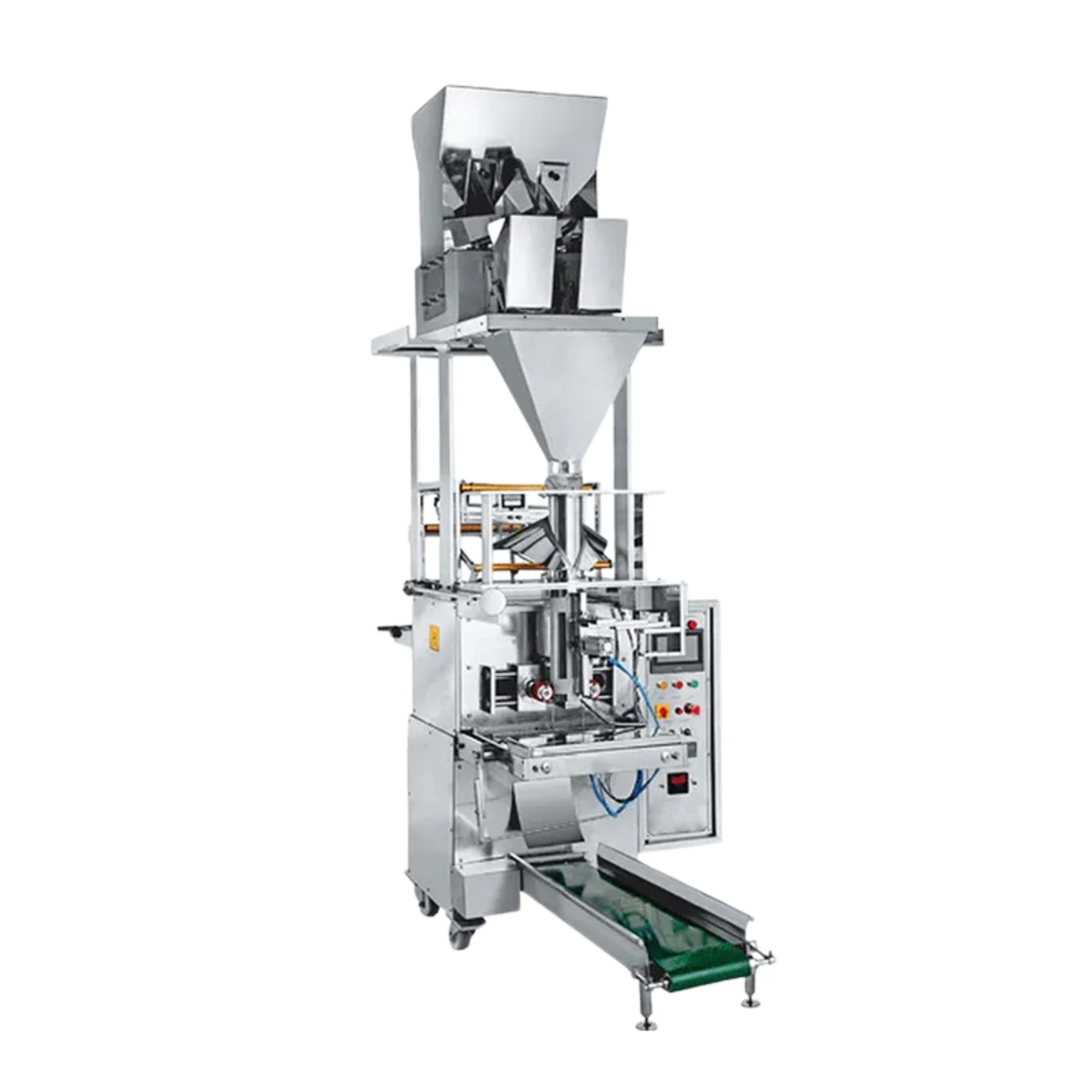

Double Head Weigh Filler Machine
The Collar Type Automatic Pouch Packing Machine with Double Head Weigh Filler is engineered to deliver precision, speed, and reliability in packaging operations. Designed to handle a wide range of free-flowing granular and non-powdered products, this machine offers a weighing range from 10g to 1kg and utilizes a dual vibratory filling system for enhanced productivity and consistent accuracy.
This machine is ideal for packaging Namkeen, Chips, Kurkure, Popcorn, Pasta, Rice, Pulses, Sugar, Grains, Dry Fruits, Candies, Biscuits, Cereals, Seeds, Chocolates, Toffees, Cookies, Khari, Rusks, Bakery Bites, Fertilizers (Granular), Hybrid Seeds, Animal Feed, Tablets (Non-Coated Bulk), Capsules (Granules), Nutraceutical Granules, Plastic Granules, Detergent Granules, Agrochemicals (Granular), and Desiccants.
Product Range
Key Features
- Robust double head vibratory filling system for accuracy and productivity
- Continuous 24x7 operation with minimal maintenance requirements
- Easy-to-use HMI interface with real-time monitoring
- Intelligent self-learning software reduces manual adjustments
- Eye mark controller for precise seal positioning
- Batch printing system integration available
- Automatic batch-wise and day-wise pouch count tracking
- Collar type forming system for high-quality, well-shaped pouches
- Leak-proof sealing with advanced pneumatic mechanisms
- Flexible strip cut / single cut system
- Provision for nitrogen flushing for longer shelf life
Nitrogen gas flushing unit (for extended shelf life)
Hole punching unit
TTO for batch/date printing
Gusseting unit
Fast-change film roll unit
D-Cut option
Technical Specifications
| Model | AI-1008 |
| Forming Type | Collar |
| Weighing Range (Grammage) | 10g – 1kg |
| Accuracy | 0.1 – 0.5 |
| Roll Width (mm) | 170 – 530 |
| Pouch Length (mm) | 75 – 330 |
| Vertical Seal Width (mm) | 10/15 typical |
| Horizontal Seal Width (mm) | 10/15 typical |
| Speed (PPM) | 8 – 14 DPM* |
| Output | 42 – 450 kg/hr* |
| Hopper | 1 no |
| Pan | 2 nos |
| Vibratory Feeder | 2 nos |
| Delivery Chute | 1 no |
| Floor Area | 23 sq. ft |
| Power Supply | Single phase, 230 VAC |
| Air Supply | 2 HP, 8 bar pressure, 2 CFM |
| Serration & Cutting | Count cutting provided, programmable via HMI |
| Control of FFS | Microcontroller-based |
| Eye Mark Controller | Provided |
| Process Parameter Setting | Through HMI |
| Film Draw Mechanism | Steeper / Servo motor |
| Horizontal Sealing Mechanism | Pneumatic |
| Vertical Sealing Mechanism | Pneumatic |
| Material of Construction | All contact parts in SS304 |
