Screw type flow meters SVC
HIGHLY PRECISE AND ROBUST
Our screw type flow meters incorporate the product characteristics robustness, high-precision measuring accuracy, good handling as well as durability and economy. Further advantages are resistance and insensitivity to contamination, pulsation free and low pressure drop.
- SVC
- VC with encoder
- SVC with IO-link
- SVC with analogue technology

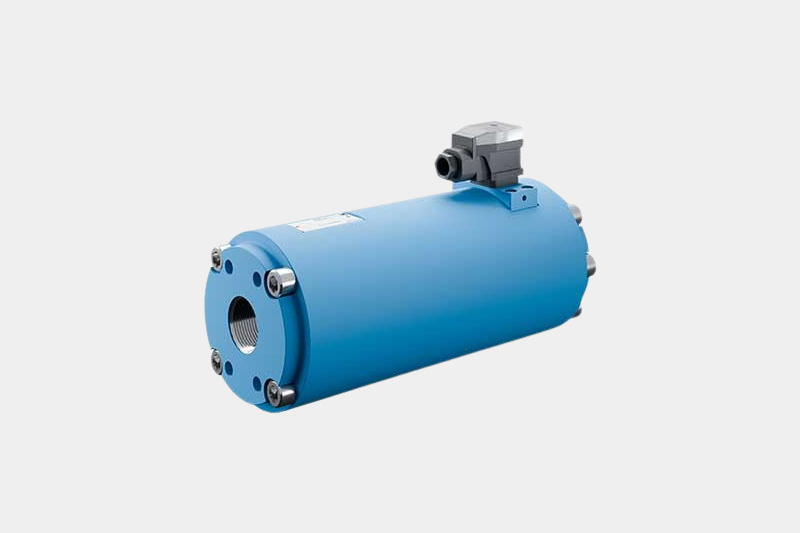

SCREW TYPE FLOW METERS SVC
Particularly suitable for highly viscous media with abrasive fillers.
CHARACTERISTICS
- Measuring range: 0.4 … 3 750 l/min
- Media temperature: -40 … 210 °C
- Maximum pressure: … 480 bar
APPLICATIONS
- Fuel consumption measurement
- Dosing systems
- Process technology
- Test bench construction
PRODUCT CHARACTERISTICS
- High-precision measurement with outstanding reproducibility
- Pulsation-free measuring principle
- Very low pressure drop
- Any flow direction
- Wide temperature range
- High working pressure
- High-response measurement
- Very low noise emission
- Electronics in EMC compliant design
- RoHS compliant
Options
- ATEX version
SCREW TYPE FLOW METERS SVC WITH ENCODER
With maximized measured value resolution for high-precision measurements in process and test bench technology.
CHARACTERISTICS
- Measuring range: 1.0 … 150 l/min
- Media temperature: -20 … 80 °C
- Maximum pressure: … 250 bar
APPLICATIONS
- Process technology
- Test bench construction
PRODUCT CHARACTERISTICS
- Basic device identical to standard SVC
- Maximized measurement resolution up to 247 463 Imp/l
SCREW TYPE FLOW METERS SVC WITH IO-LINK TECHNOLOGY
Signal conversion with internal calculation of measured values.
CHARACTERISTICS
- Measuring range: 0.4 … 3 750 l/min
- Media temperature: -30 … 80 °C
- Maximum pressure: … 480 bar
APPLICATIONS
- Process technology
- Test bench construction
PRODUCT CHARACTERISTICS
- Basic device identical to standard VC
- Output of square-wave signals in SIO mode
- Output of specific measured values in IO-Link mode
- Simplified commissioning through IODD file (IO Device Description)
SCREW TYPE FLOW METERS SVC WITH analogue TECHNOLOGY
For control units or measuring devices with standard analogue current inputs.
CHARACTERISTICS
- Measuring range: 0.4 … 3 750 l/min
- Media temperature: -30 … 80 °C
- Maximum pressure: … 480 bar
APPLICATIONS
- Process technology
- Test bench construction
PRODUCT CHARACTERISTICS
- Basic device identical to standard SVC
- Analogue output signal for flow rate determination
- Additional digital signal for flow direction determination
- Individualisation of the measuring range possible
- Universal application possibilities
- 16 bit resolution
- Cable break detection
- Display of flow rate and direction by proportional LED behaviour on the device
