Turbine flow meters TM
PRECISE AND EFFECTIVE
KRACHT TM turbine flow meters are proven and widely used measuring devices in industrial fluid measurement technology. The instruments provide reliable, continuous and accurate measurement of liquids flowing under pressure in closed pipes. Thanks to the stainless steel design, the flow meters are suitable for a variety of even aggressive media.
- TM
- TM with IO-link technology
- TM with analogue technology

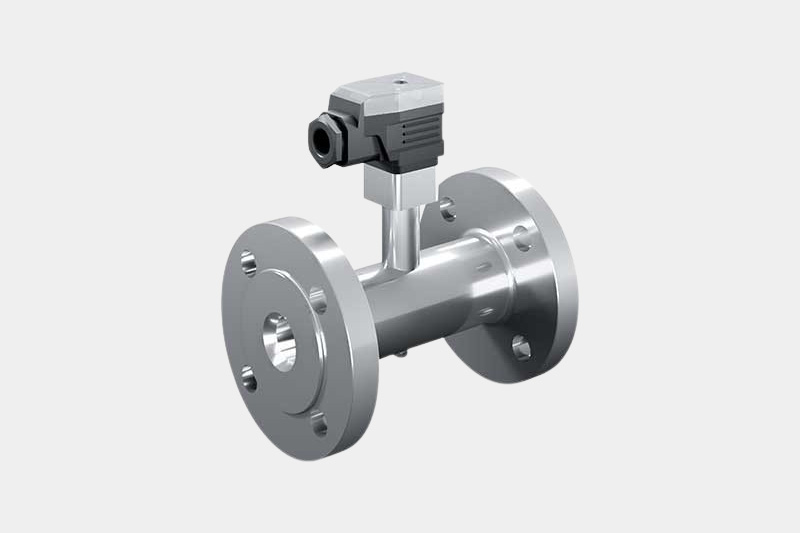

TM
CHARACTERISTICS
- Measuring range: 0.92 … 66 667 l/min
- Media temperature: -30 … 400 °C
- Maximum pressure: … 400 bar
APPLICATIONS
- Flow measurement of water, cooling lubricants, emulsions and other lubricant and non-lubricant media
PRODUCT CHARACTERISTICS
- Very large measuring range
- Very low pressure drop
- High working pressure
- Low noise emission
- Electronics in EMC compliant design
Options
- ATEX version
- List Item
TM with IO-Link Technology
Signal conversion with internal calculation of measured values.
CHARACTERISTICS
- Measuring range: 0.92 … 66 667 l/min
- Media temperature: -30 … 80 °C
- Maximum pressure: … 400 bar
APPLICATIONS
- Flow measurement of water, cooling lubricants, emulsions and other lubricant and non-lubricant media
PRODUCT CHARACTERISTICS
- Basic device identical to standard TM
- Output of square-wave signals in SIO mode
- Output of specific measured values in IO-Link mode
- Simplified commissioning through IODD file (IO Device Description)
IODD Download
- On request
TM with analogue Technology
For control units or measuring devices with standard analogue current inputs.
CHARACTERISTICS
- Measuring range: 0.92 … 66 667 l/min
- Media temperature: -30 … 80 °C
- Maximum pressure: … 400 bar
APPLICATIONS
- Flow measurement of water, cooling lubricants, emulsions and other lubricant and non-lubricant media
PRODUCT CHARACTERISTICS
- Basic device identical to standard TM
- Analogue output signal for flow rate determination
- Additional digital signal for flow direction determination
- Individualisation of the measuring range possible
- Universal application possibilities
- 16 bit resolution
- Cable break detection
- Display of flow rate and direction by proportional LED behaviour on the device
