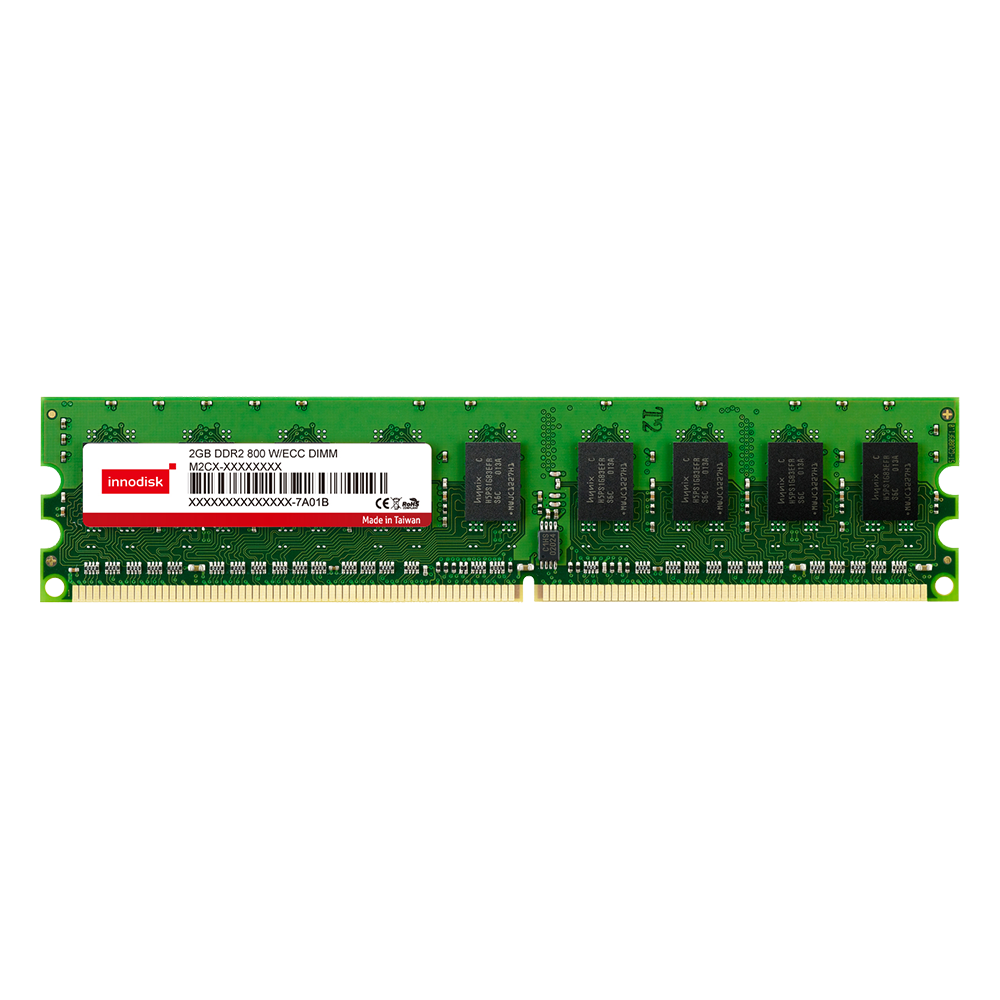

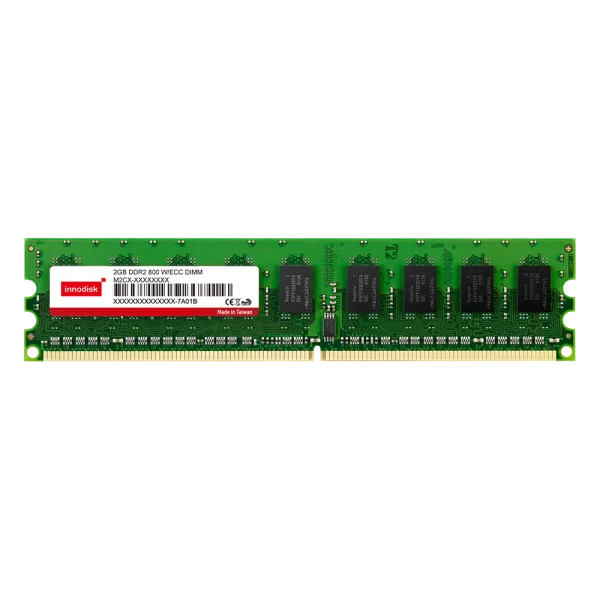

DDR2 ECC UDIMM

DDR2 ECC UDIMM

Features:

- - ECC DIMM incorporates error correction and detection capabilities
  - Fully tested and optimized for stability and performance
  - Uses original IC to meet strict industrial standards
  - JEDEC standard 1.8V +/- 0.1V
  - Operating Environment: 0°C ~ 85°C
  - 30μ” Gold Finger
  - RoHS Compliance

Technical Resource

Categories: ddr2, DRAM Modules

Description
Reviews (0)

Description

Model Name	DDR2 ECC UDIMM
DDR Generation	DDR2 Memory
DIMM Type	ECC UDIMM
Speed	667 MT/s, 800 MT/s
Density	1GB, 2GB
Function	ECC Unbuffered Memory
Pin Number	240pin
Bus Width	x72
Voltage	1.8V
PCB Height	1.18 Inches
Operating Temperature	0°C ~ 85°C

Order Information:

P/N	IC Config.	Rank	Temp.	Description
M2CK-1GMFRC06-M	128M x 8	1R x 8	0°C ~ 85°C	DDR2 800 1GB ECC UDIMM
M2CK-2GMF9C06-M	128M x 8	2R x 8	0°C ~ 85°C	DDR2 800 2GB ECC UDIMM
