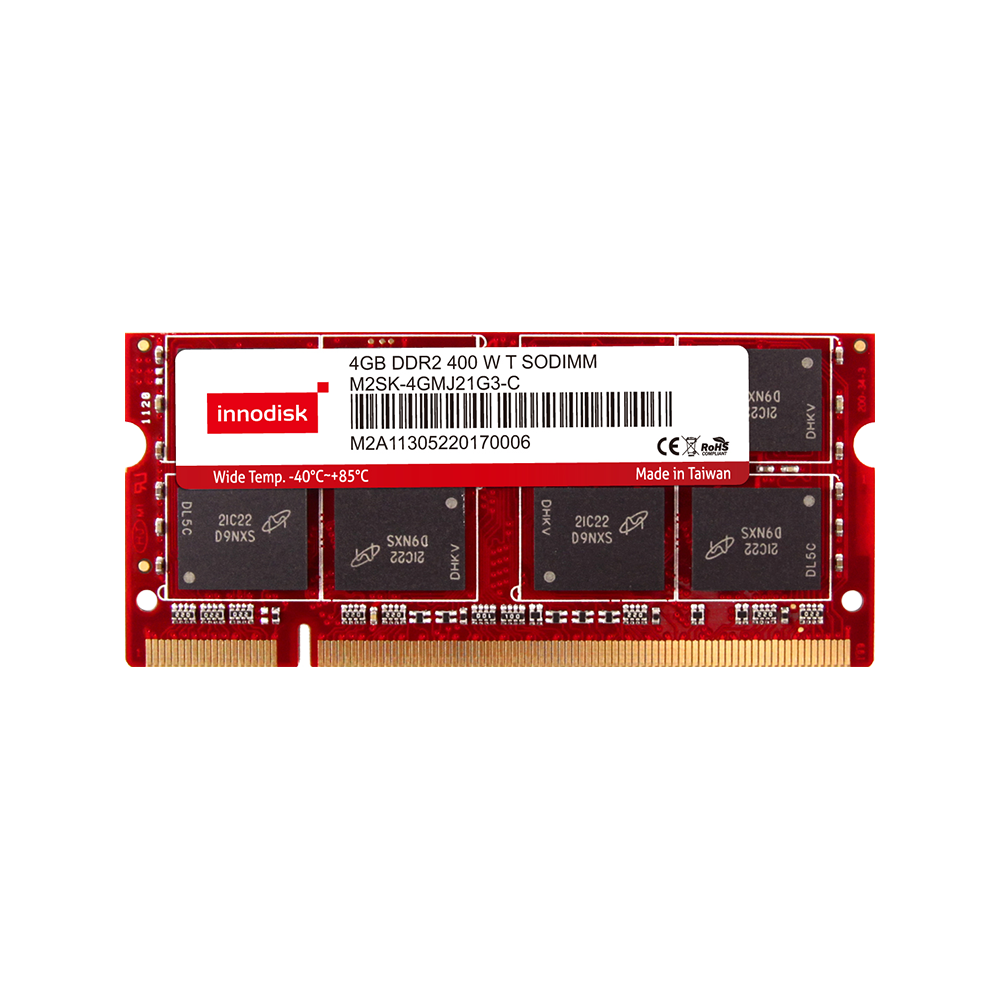

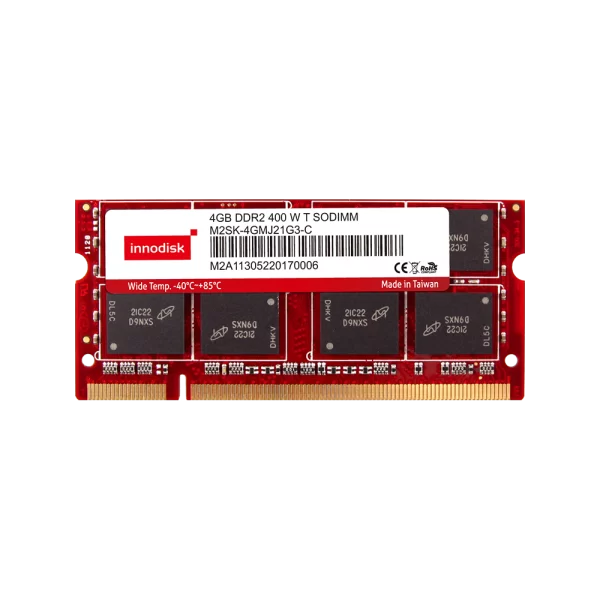

DDR2 Wide Temp. SODIMM

DDR2 Wide Temp. SODIMM

Features:

- - Small Outline Dual In-line Memory Module
  - Fully Tested and Optimized for Stability and Performance
  - Uses Original IC to Meet Strict Industrial Standards
  - JEDEC Standard 1.8V +/- 0.1V
  - Operating Environment : -40°C ~ 85°C
  - 30μ” Gold Finger
  - RoHS Compliance
  - CE/FCC Certification

Technical Resource

Categories: ddr2, DRAM Modules

Description
Reviews (0)

Description

Model Name	DDR2 Wide Temperature SODIMM
DDR Generation	DDR2 Memory
DIMM Type	SODIMM
Speed	533 MT/s, 667 MT/s, 800 MT/s
Density	1GB, 2GB
Function	Non-ECC Unbuffered Memory
Pin Number	200pin
Bus Width	x64
Voltage	1.8V
PCB Height	1.18 Inches
Operating Temperature	-40°C ~ 85°C
30μ” Gold Finger	Y

Order Information:

P/N	IC Config.	Rank	Temp.	Description
M2SK-1GMF5I05-M	128M x 8	1R x 8	-40°C ~ 85°C	DDR2 800 1GB Wide Temperature SODIMM
M2SK-2GMF6I05-M	128M x 8	2R x 8	-40°C ~ 85°C	DDR2 800 2GB Wide Temperature SODIMM
