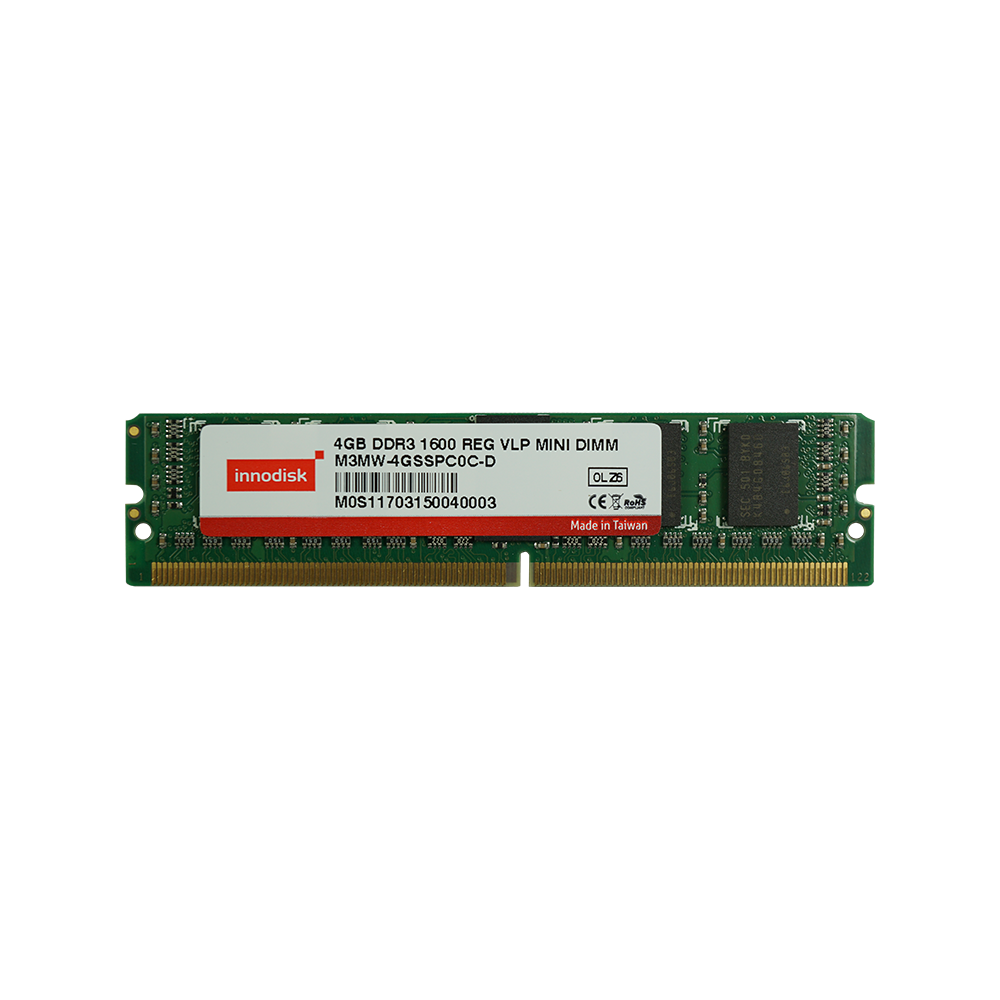

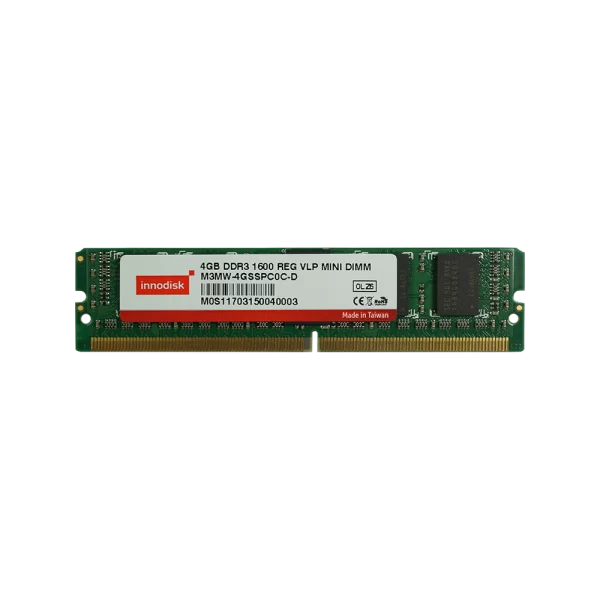

DDR3 Mini RDIMM VLP

DDR3 Mini RDIMM VLP

Features:

- - Suitable for small-size routers, switches, and bridges
  - Very low profile specialized for use in 1U system
  - Register that enhances clock, command, and control signals
  - ECC DIMM incorporates error correction and detection capabilities
  - Fully tested and optimized for stability and performance
  - Uses original IC to meet strict industrial standards
  - 30μ” Gold Finger
  - RoHS Compliance and CE / FCC Certification

Technical Resource

Categories: ddr3, DRAM Modules

Description
Reviews (0)

Description

Model Name	DDR3 Mini RDIMM VLP
DDR Generation	DDR3 Memory
DIMM Type	Mini RDIMM VLP
Speed	1600 MT/s
Density	2GB, 4GB
Function	Registered Memory with ECC
Pin Number	244pin
Bus Width	x72
Voltage	1.35V, 1.5V
PCB Height	0.738 Inches
Operating Temperature	0°C ~ 85°C
30μ” Gold Finger	Y

Order Information:

P/N	IC Config.	Rank	Temp.	Description
M3M0-2GMJPCPC	256M x 8	1R x 8	0°C ~ 85°C	DDR3 1600 2GB Mini RDIMM VLP
M3M0-2GMJPLPC	256M x 8	1R x 8	0°C ~ 85°C	DDR3L 1600 2GB Mini RDIMM VLP
M3M0-4GSSPCPC	512Mx8	1R x 8	0°C ~ 85°C	DDR3 1600 4GB Mini RDIMM VLP
M3M0-4GSSPLPC	512Mx8	1R x 8	0°C ~ 85°C	DDR3L 1600 4GB Mini RDIMM VLP
