| Model Name | EMPU-3201 |
|---|---|

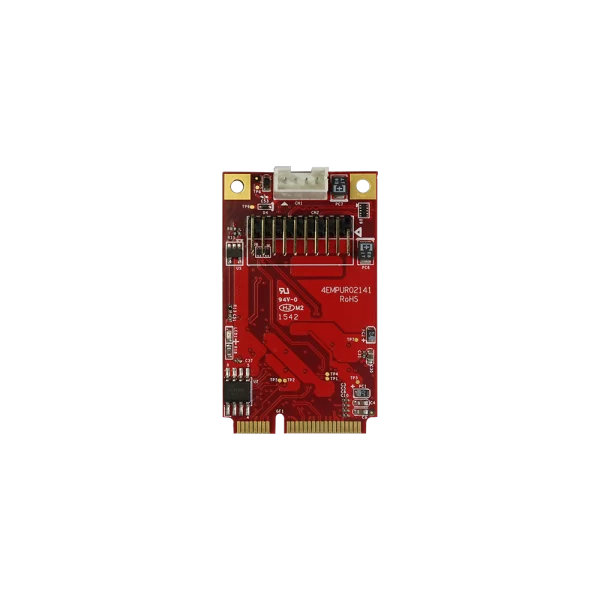

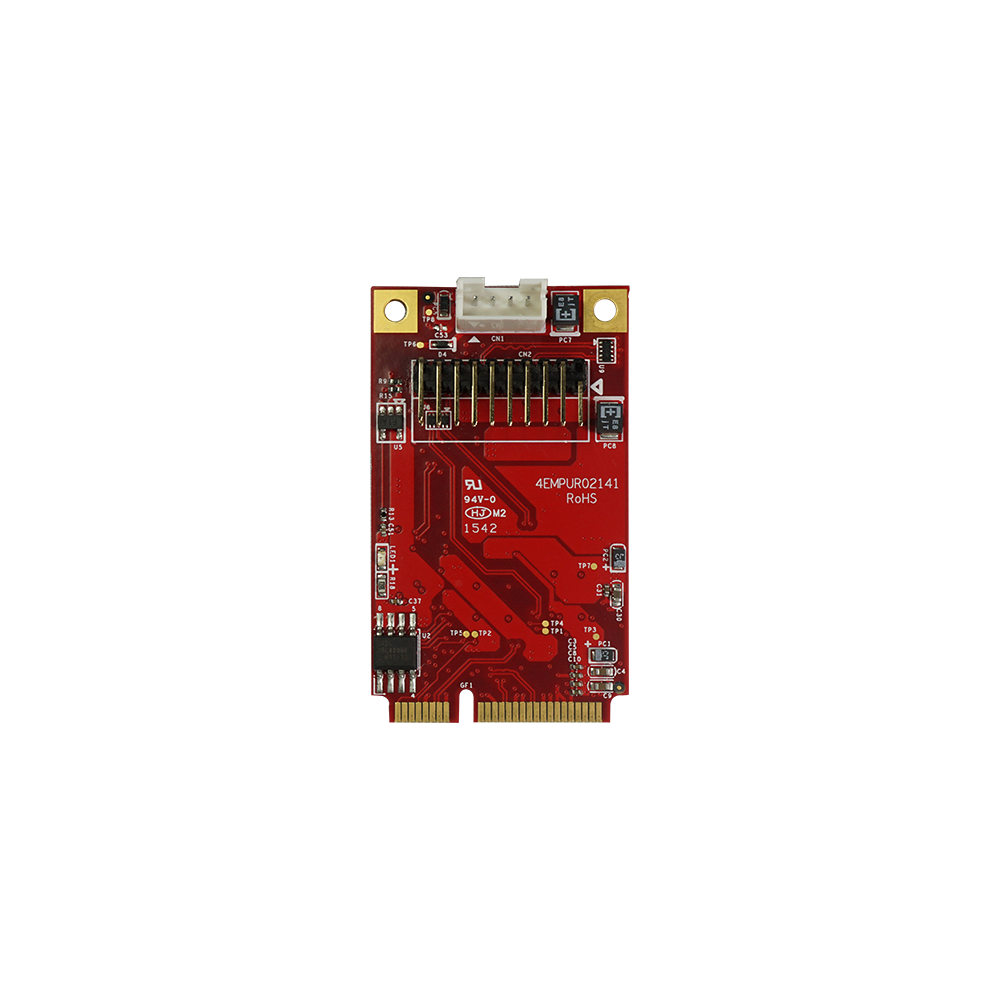

| Module Type | mPCIe to Dual USB 3.0 Module |
| Form Factor | mPCIe |
| Function | Storage |
| Input I/F | PCI Express 2.0 x1 |
| Output I/F | USB 3.0 |
| Output Port | 1 |
| Output Connector | 19-pin Header |
| Max. Power Consumption | 0.89W (3.3V x 270mA) |
| Dimension (W x L x H/mm) | 30 x 50.9 x 8.45 |
| Temperature | Operation : S/T 0° ~ 70°C ; W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | 50G@0.5ms |
| OS Support | Windows : XP (32bit), 7 (32 / 64bit), Vista Linux : Kernel v2.6.0, v2.6.8 |
| Warranty | 3 Years |
| Notes | After Win8 and Linux Kernel v2.6.31 supports built-in xHCI 1.0. |
Order Information:
| P/N | Description |
| EMPU-3201-C1 | mPCIe to Dual USB 3.0 Module / Standard Temperature |
| EMPU-3201-W1 | mPCIe to Dual USB 3.0 Module / Wide Temperature |
