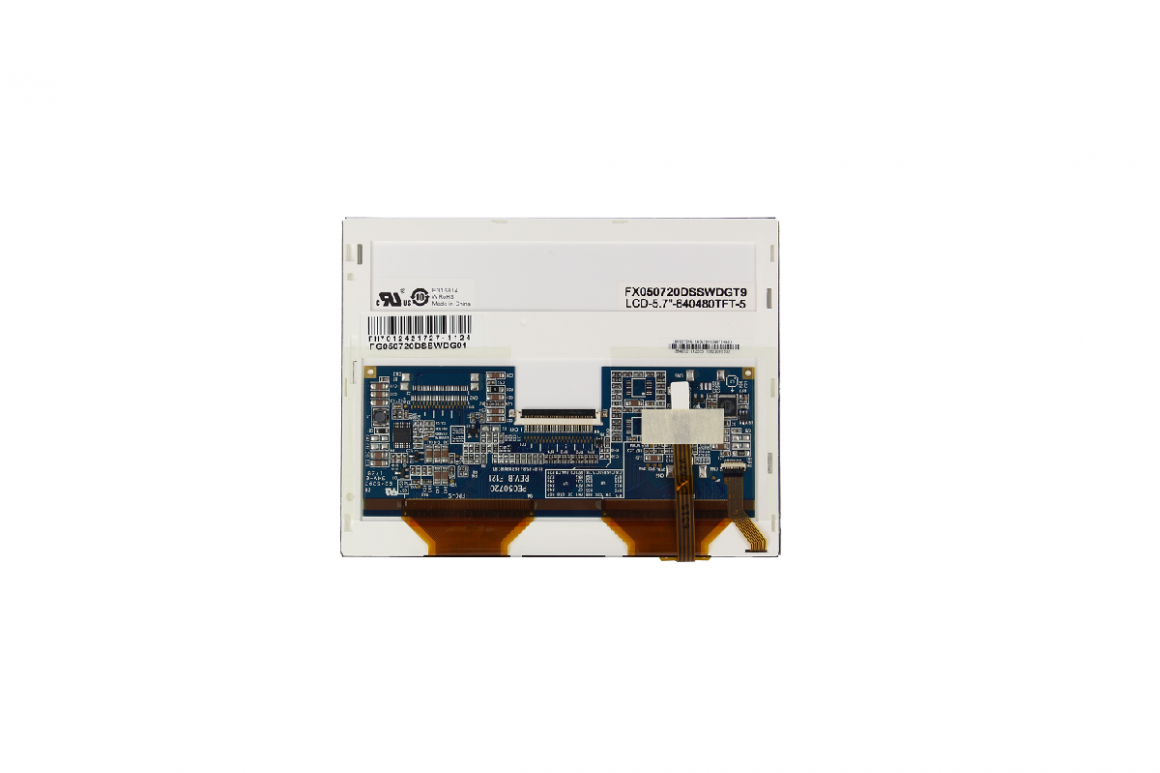

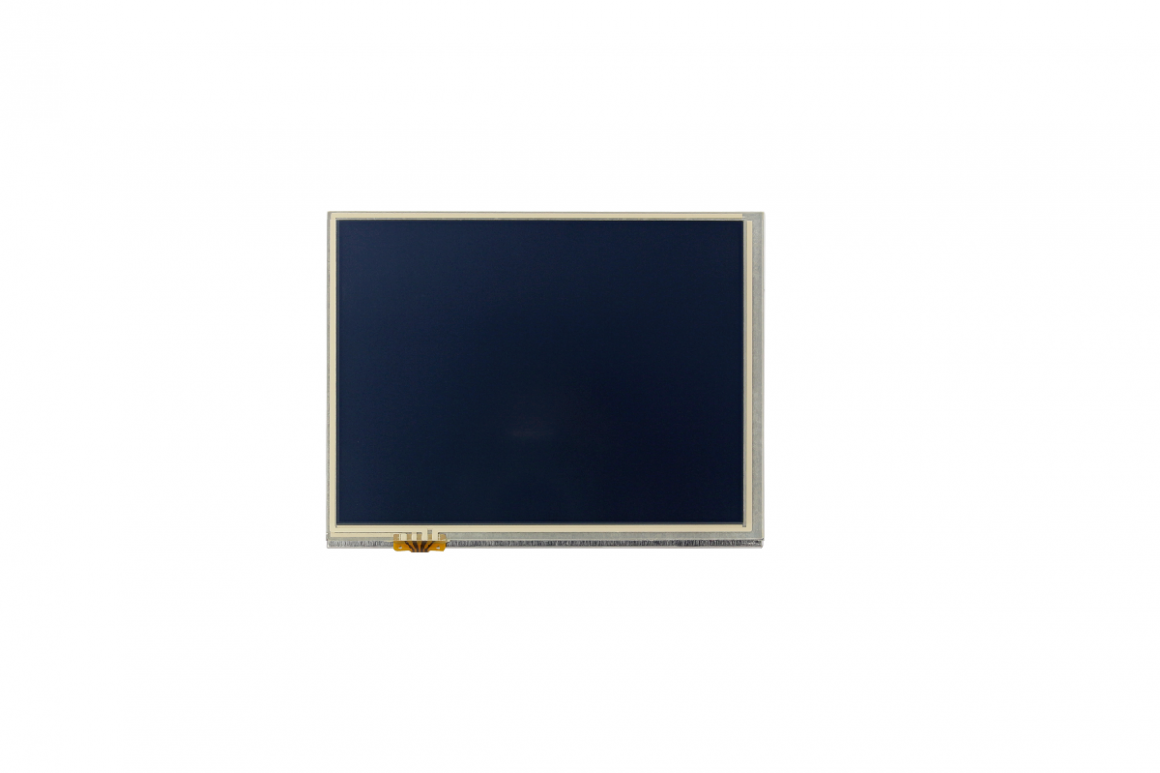

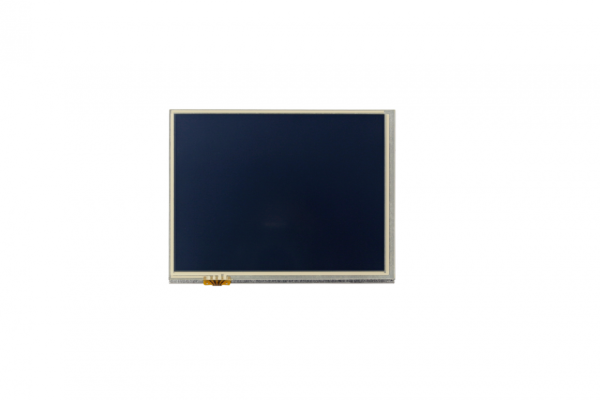

LCD-DI057-SET

LCD-DI057-SET - Image 2

LCD-DI057-SET

Specifications:

- - - 5.7 inch TFT 640×480 Resolution LCD panel
    - Operation Temperature: -20 ~ +70°C
    - Brightness 500nits and Backlight 50,000hrs
    - Standard LCD cable set only for ICOP’s SBC
    - Optional: Resistive touchscreen with RS-232/USB touch controller.

Technical Resource

Category: LCD

Description
Reviews (0)

Description

Model Name	5.7″ LCD SET
Size	5.7″ VGA LCD
Resolution	640 x 480
Colors & Backlight	262,144 / LED
View Angle	V 100°, H 140°
Brightness	500 cd/m2
Backlight life	50,000 hrs
Contrast Ratio	300:1
Response Time	50 ms
Signal Interface	18 bits TTL
Power Requirement	3.3 VDC
Power Consumption	2W
Operating Temperature	-20 ~ +70 °C
Accessories	LCD Panel with LCD Cable
Optional	USB/ RS-232 Touch Controller 4-wire Analog Resistive Touch Screen
