Description
| SoC | DM&P SoC CPU Vortex86SX- 300MHz Real-Time Clock with Lithium Battery Backup |
| Cache | L1:16K I-Cache, 16K D-Cache |
| Bus | PCI Bus standard compliant |
| BIOS | AMI BIOS |
| System Memory | 128MB DDR2 Onboard |
| Watchdog Timer | Software programmable from 30.5µ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D) |
| LAN | Integrated 10/100Mbps Ethernet |
| Flash Disk Support | Onboard 2MB SPI Flash Disk Onboard SST Flash Disk 512MB/1GB/2GB/4GB(Optional) MSTI EmbedDisk Module (16MB and above) |
| Serial Console | Controlled by GP 36/37 |
| I/O interface | Enhanced IDE port x1 RS-232 port x5 (TX/RX x1) USB port (Ver2.0) x4 16-bit GPIO port x2 10/100Mbps Ethernet port x1 |
| Connectors | 1.27mm 50-pin box header for signal x4 1.25mm 6-pin wafer for JTAG x1 |
| Power Requirement | Single Voltage +5V @ 300mA |
| Dimension | 52 (L) x 52 (W) x 10.5 (H) mm (With Cover) |
| Weight | 15g |
| Operating Temperature | -20°C ~ +70°C -40°C ~ +85°C (Optional) |
Order Information:
| Part Number | Description |
| SOM200SX31PCNE1 | Vortex86SX SOM200 CPU module w/128MB DDR2 |
| SOM200SX31PCBE1 | Vortex86DX SOM200 CPU module w/128MB DDR2, NAND Flash 512MB |
| SOM200SX-DEV-PC | SOM200SX-PC Development Board |
| MiniPCI-VGA-Z9s | XGI Z9s VGA/LVDS MiniPCI Display Board |
| PCI-MiniPCI | PCI to MiniPCI Converter |
Additional Information:
The System on Module is a core module with the processor, memory, and I/O that would contain the following benefits in the respect of system design.
SOM200SX-PC is suitable for a broad range of data-acquisition, Industrial automation, Process control, Automotive controller, AVL, Intelligent Vehicle management device, Medical device, Human-machine interface, Robotics and machinery control.

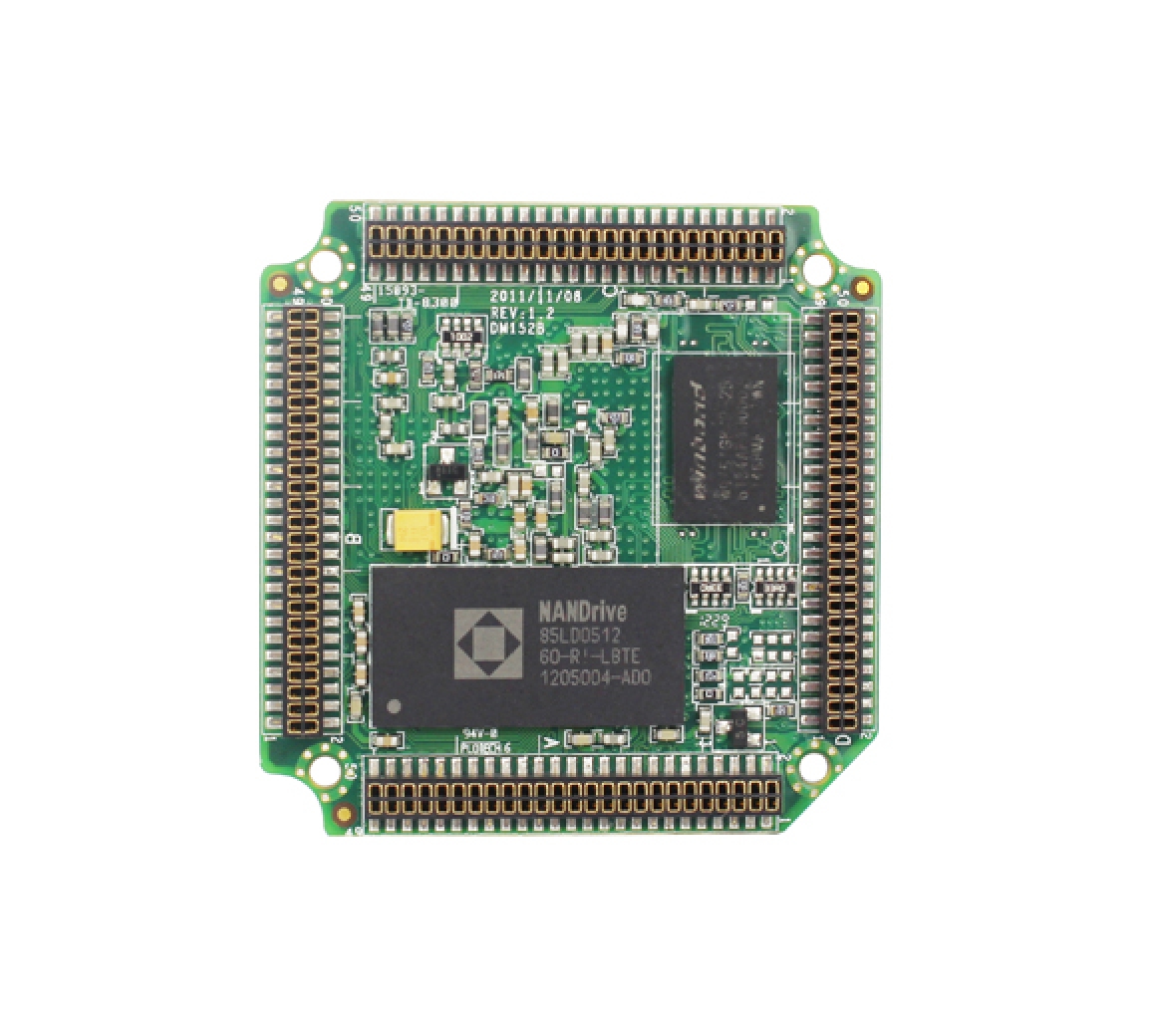

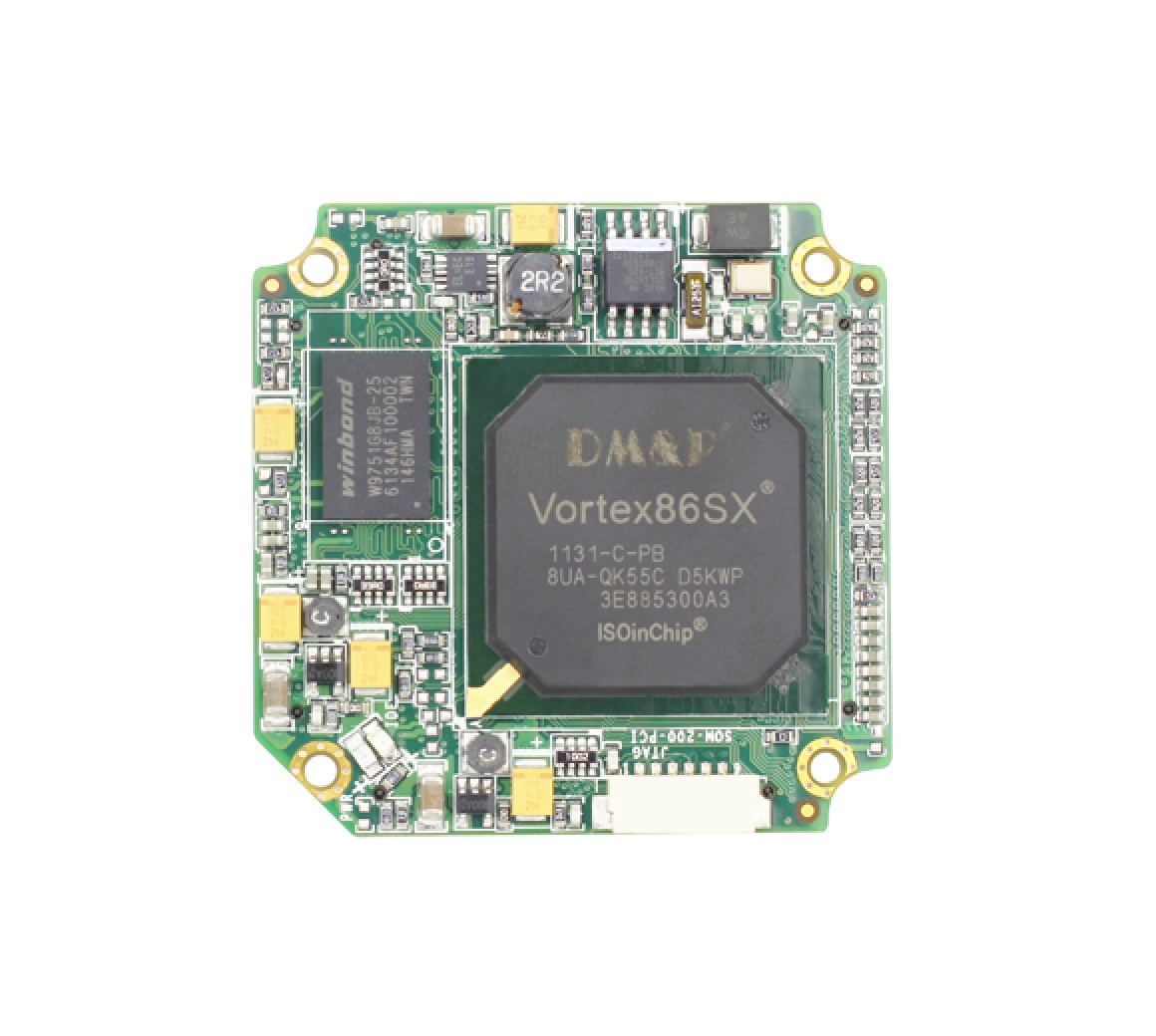

SOM200SX-PC measured at only 52mm (L)*52mm (W)*10.5mm (H), is designed particularly as the kernel for the diverse expandable applications. Through 8 rows of 25pin connector, SOM200SX-PC is able to provide multiple functions, such as RS-232, IDE, LAN, USB, and GPIO.
To assist users in easily adapt SOM200SX-PC Module into their applications, ICOP offers a complete development board and referential circuit diagram for SOM200SX-PC Module in order to reduce users’ time.
