Description
| SoC | DM&P SoC CPU Vortex86DX- 800MHz Real-Time Clock with Lithium Battery Backup |
| Cache | L1:16K I-Cache, 16K D-cache L2:128KB Cache |
| BIOS | AMI BIOS |
| System Memory | 256 /512MB DDR2 Onboard |
| Watchdog Timer | Software programmable from 30.5 us to 512 seconds x2 sets(Watchdog 1 fully compatible with M6117D) |
| I /O Interface | RS-232 port x3 USB port x1 (USB 2.0 version) |
| Connectors | 1.25mm Ø 3-pin Wafer for RS-232 x3 1.25mm Ø 4-pin Wafer for USB x1 1.25mm Ø 4-pin Wafer for KBD x1 1.25mm Ø 6-pin Wafer for JTAG x1 Type I/II Compact Flash slot x1 |
| Flash Disk Support | Onboard 4MB SPI Flash Disk (Driver: A) Type I/II CF Card |
| Power Requirement | Single Voltage +5V @ 380mA |
| Dimension | 90mm x 46mm (3.54 x1.81 inches) |
| Weight | 30g |
| Operating Temperature | -20oC ~ +70oC -40°C ~ +85°C (Optional) |
Order Information:
| Part Number | Description |
| VDX-6300RD | Vortex86DX DIP 68pin CPU Module with 256MB DDR2 |
| VDX-6300RD-512 | Vortex86DX DIP 68pin CPU Module with 512MB DDR2 |
| VSX-6100-EVB | Vortex86SX DIP 48/68pin CPU Module Development Board |
Additional Information:

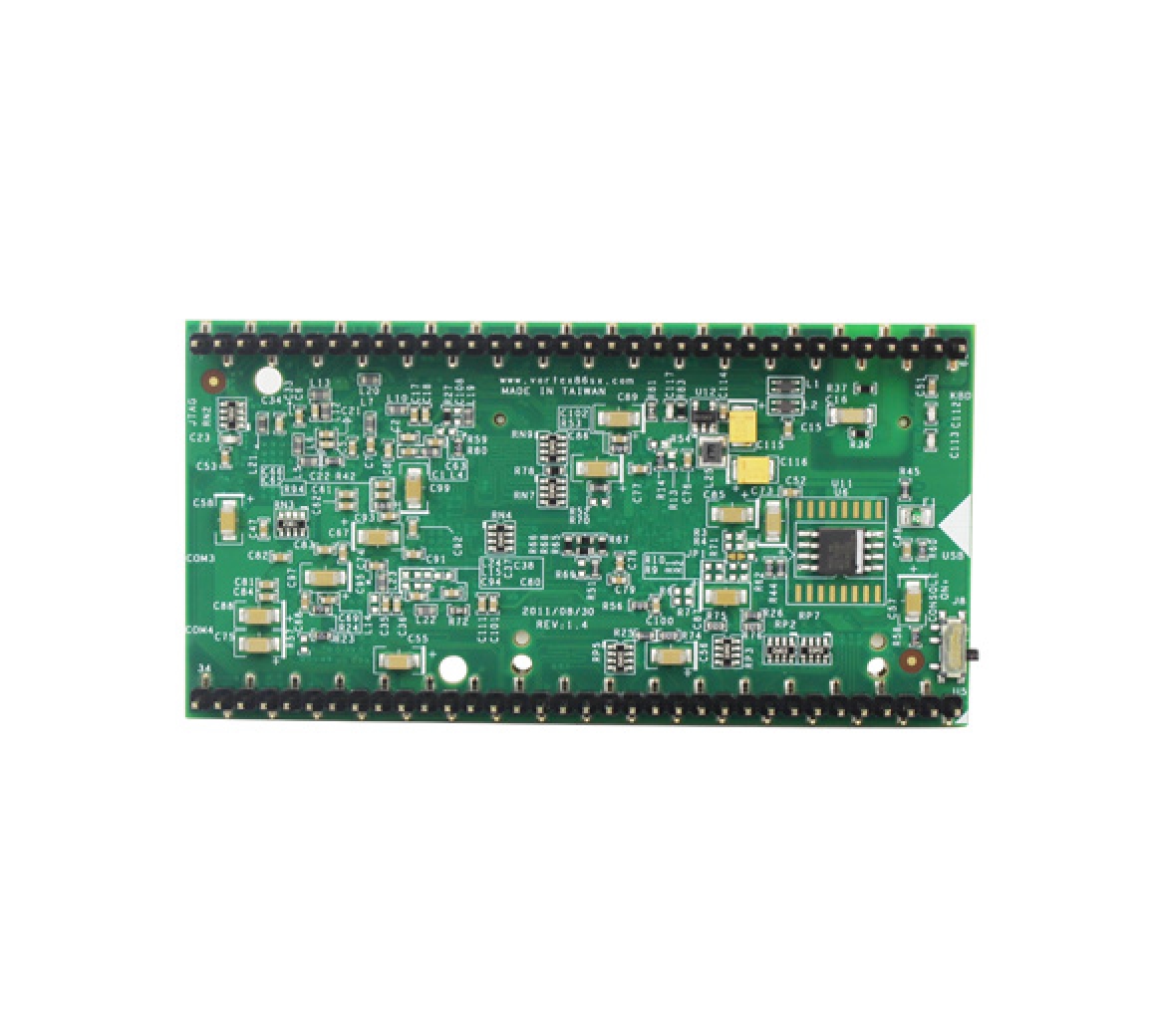

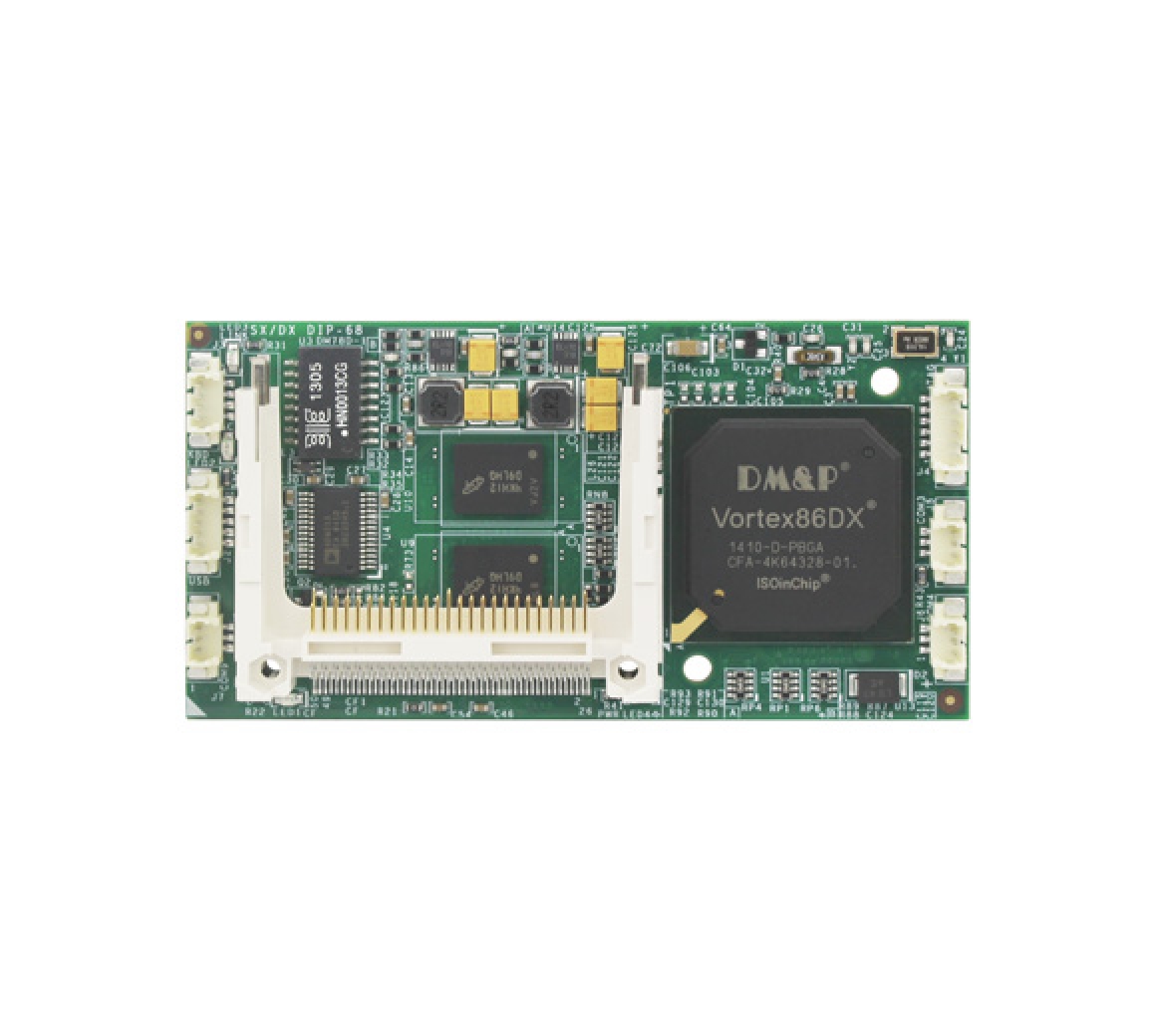

The VDX-6300RD family of low-power x86 embedded controller is designed to meet DIP 68pin CPU module specification, and integrated with the following features.
The VDX-6300RD DIP 68pin controller is designed with backward compatibility in mind, to provide a migration path for projects facing end-of-life challenges with their existing x86 based controller. The VDX-6300RD family of controllers is designed as a plug-in replacement, with backward compatibility to support legacy software to help extend the existing product life cycle without heavy re-engineering.
VDX-6300RD is suitable for a broad range of data-acquisition, Industrial automation, Process control, Automotive controller, AVL, Intelligent Vehicle management device, Medical device, Human-machine interface, Robotics, machinery control, And more…application that required small footprint, low-power and low-cost hardware with an open industry standard such as DIP 68pin module.
