Description
| SoC | DM&P SoC CPU Vortex86DX- 800MHz Real-Time Clock with Lithium Battery Backup |
| Cache 128KB | L1:16K I-Cache, 16K D-Cache L2 Cache |
| Bus | ISA interface |
| BIOS | AMI BIOS |
| System Memory | 256/512MB DDR2 Onboard |
| Watchdog Timer 0 & 1 Sets | Software programmable from 30.5μ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D) |
| LAN | Integrated 10/100Mbps Ethernet |
| Flash Disk Support | Onboard 4MB SPI Flash Disk |
| I/O Interface | Enhanced IDE port (UltraDMA-100/66/33) x1 RS-232 port x5 (TX/RX x1) USB port x4 16-bit GPIO port x2 |
| Connectors | 1.25mm 6-pin wafer for JTAG x1 |
| Power Requirement | Single Voltage +5V @ 380mA |
| Weight | 23g |
| Board Size | 70 x 45mm (2.75 x 1.77 inches) |
| Operating Temperature | -20°C ~ +70°C -40°C ~ +85°C (Optional) |
Order Information:
| Part Number | Description |
| VDX-DIP-ISARD | Vortex86DX DIP-204pin-ISA CPU Module with 256MB DDR2 |
| VDX-DIP-ISARD-512 | Vortex86DX DIP-204pin-ISA CPU Module with 512MB DDR2 |
Additional Information:

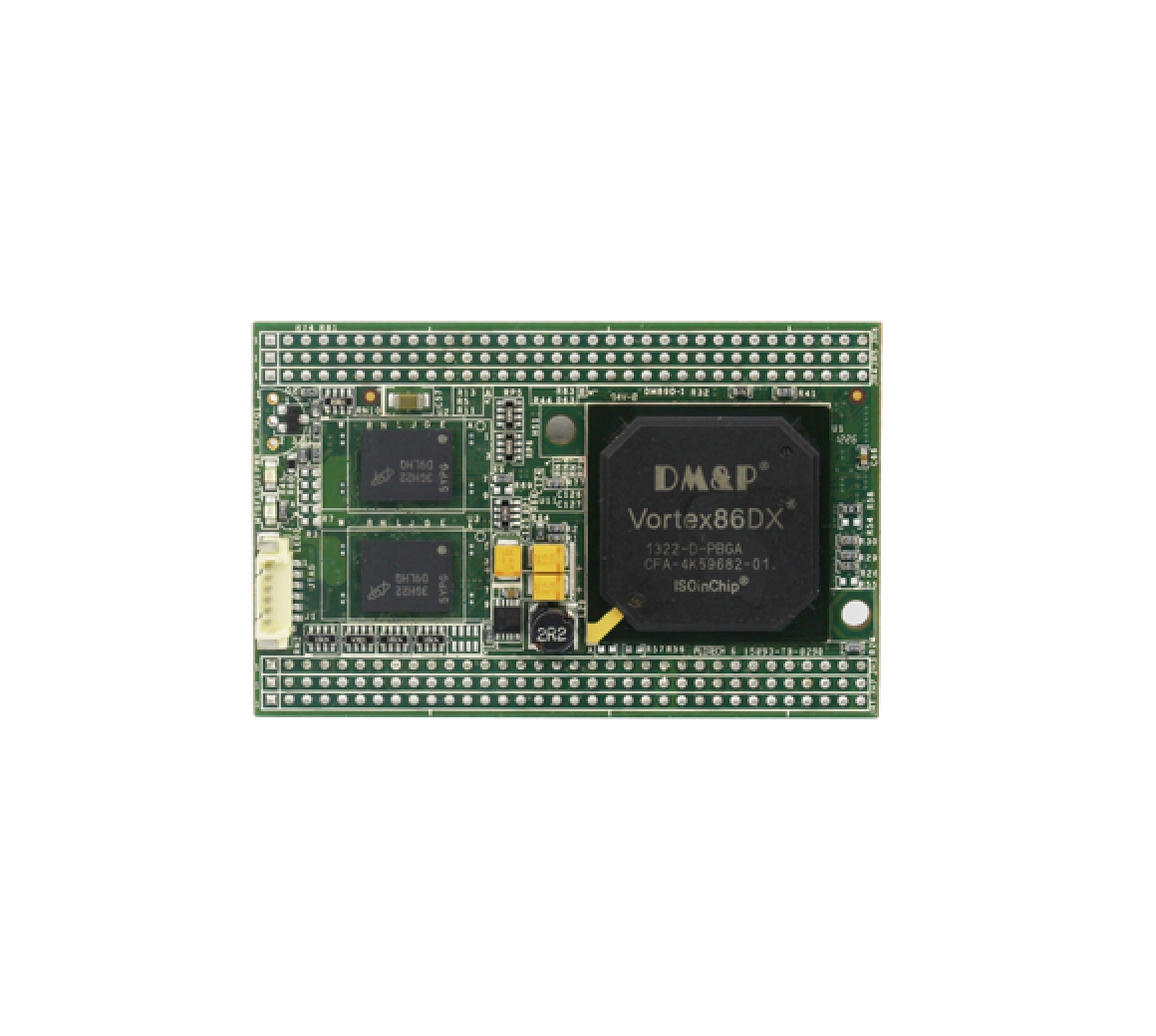

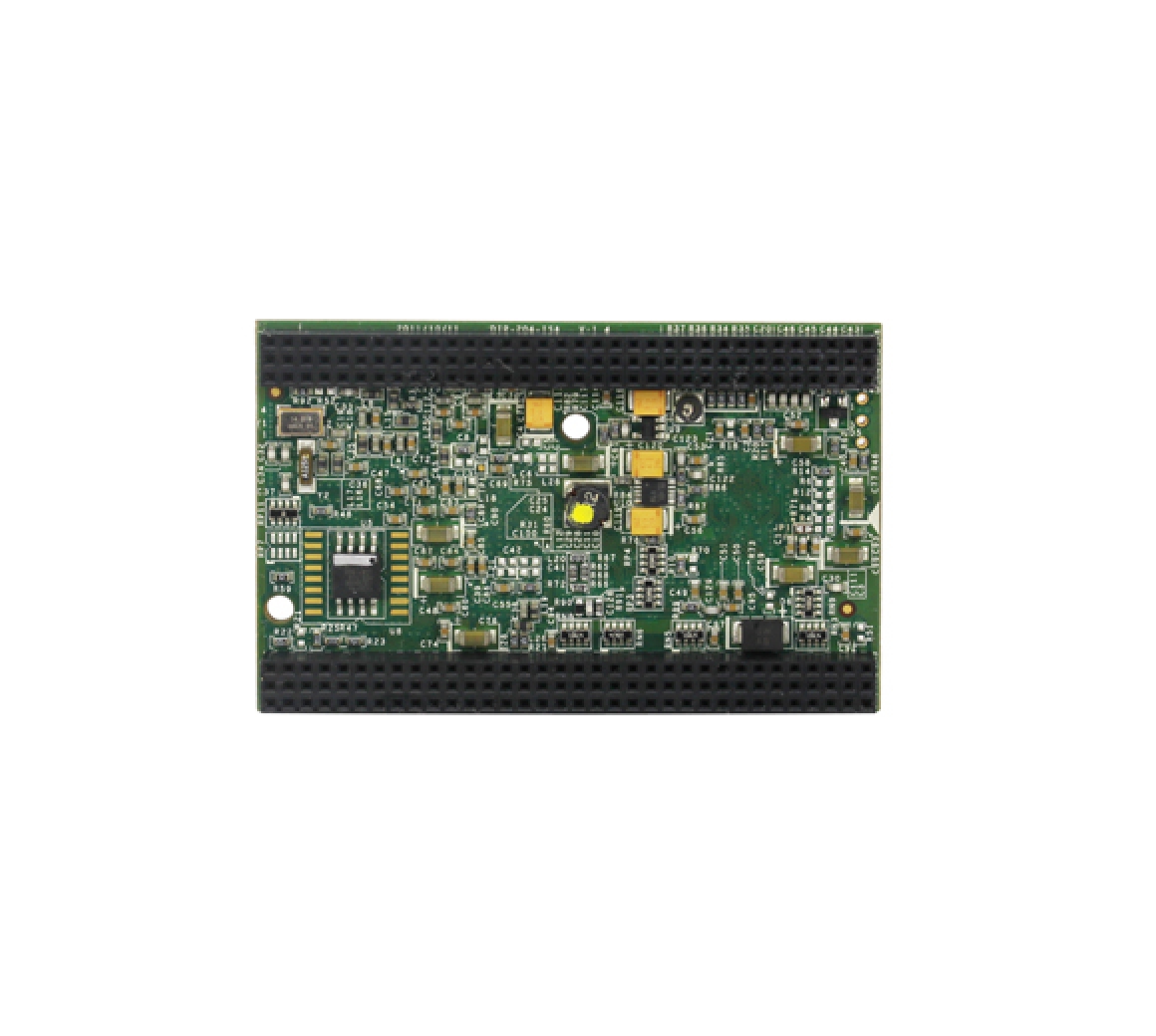

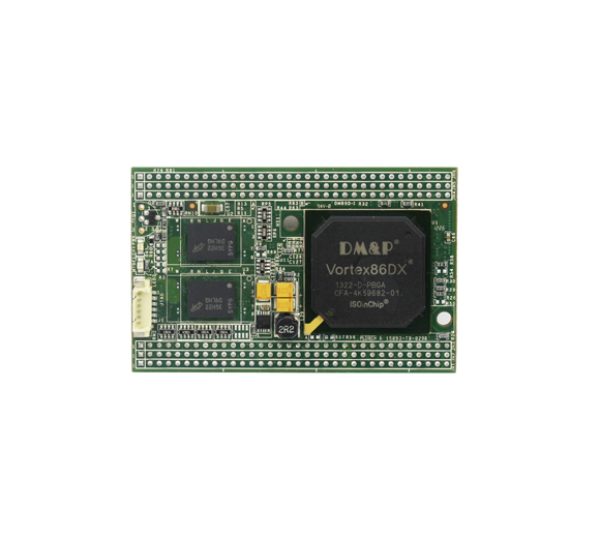

DIP-204pin-ISA module, measured at only 70 x 45mm, is designed particularly as the kernel for the diverse expandable applications. Through 6 rows of 34pin connector, DIP- 204pin-ISA module is able to provide multiple functions, such as PCI BUS, RS-232, IDE, LAN, USB, and GPIO.
To assist users in easily adapt DIP-204pin-ISA Module into their applications, ICOP offers the complete development board for DIP-204pin-ISA Module. ICOP also supplies customers with the referential circuit diagram reducing their time and effort during the development process.
