Description
| SoC | DM&P SoC CPU Vortex86DX- 800MHz Real-Time Clock with Lithium Battery Backup |
| Cache | L1:16K I-Cache, 16K D-Cache L2 Cache 128KB |
| Bus | PCI interface |
| BIOS | AMI BIOS |
| System Memory | 256/512MB DDR2 onboard |
| Watchdog Timer | Software programmable from 30.5μ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D) |
| LAN | Integrated 10/100Mbps Ethernet |
| Flash Disk Support | Onboard 4MB SPI Flash Disk |
| I/O Interface | Enhanced IDE port (UltraDMA-100/66/33) x1 RS-232 port x5 (TX/RX x1) USB port x4 16-bit GPIO port x2 |
| Connectors | 1.25mm 6-pin wafer for JTAG x1 |
| Power Requirement | Single Voltage +5V @ 380mA |
| Weight | 23g |
| Board Size | 70 x 45mm (2.75 x 1.77 inches) |
| Operating Temperature | -20°C ~ +70°C -40°C ~ +85°C (Optional) |
Order Information:
| Part Number | Description |
| VDX-DIP-PCIRD | Vortex86DX DIP-204pin-PCI CPU Module with 256MB DDR2 |
| VDX-DIP-PCIRD-512 | Vortex86DX DIP-204pin-PCI CPU Module with 512MB DDR2 |
Additional Information:

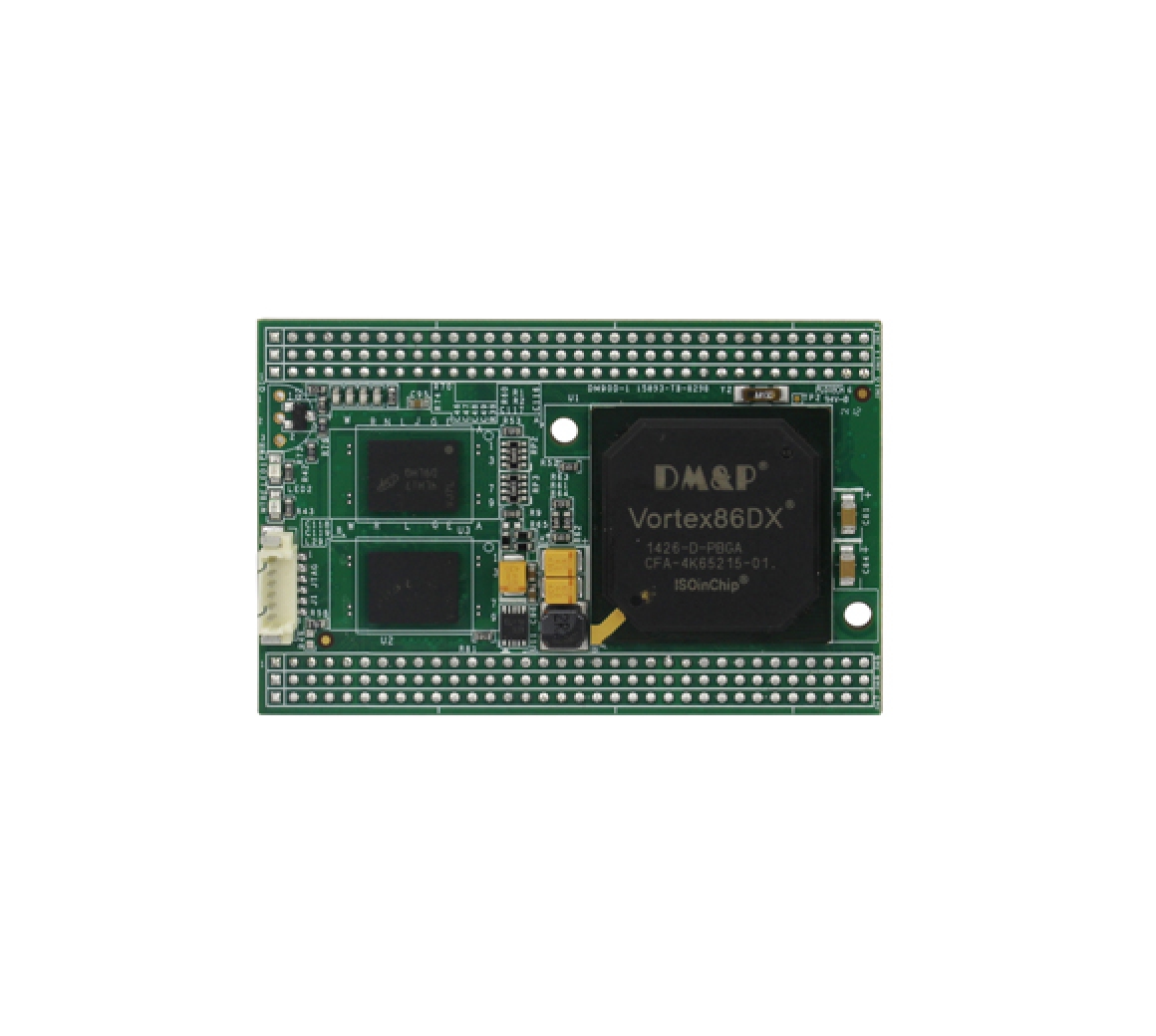

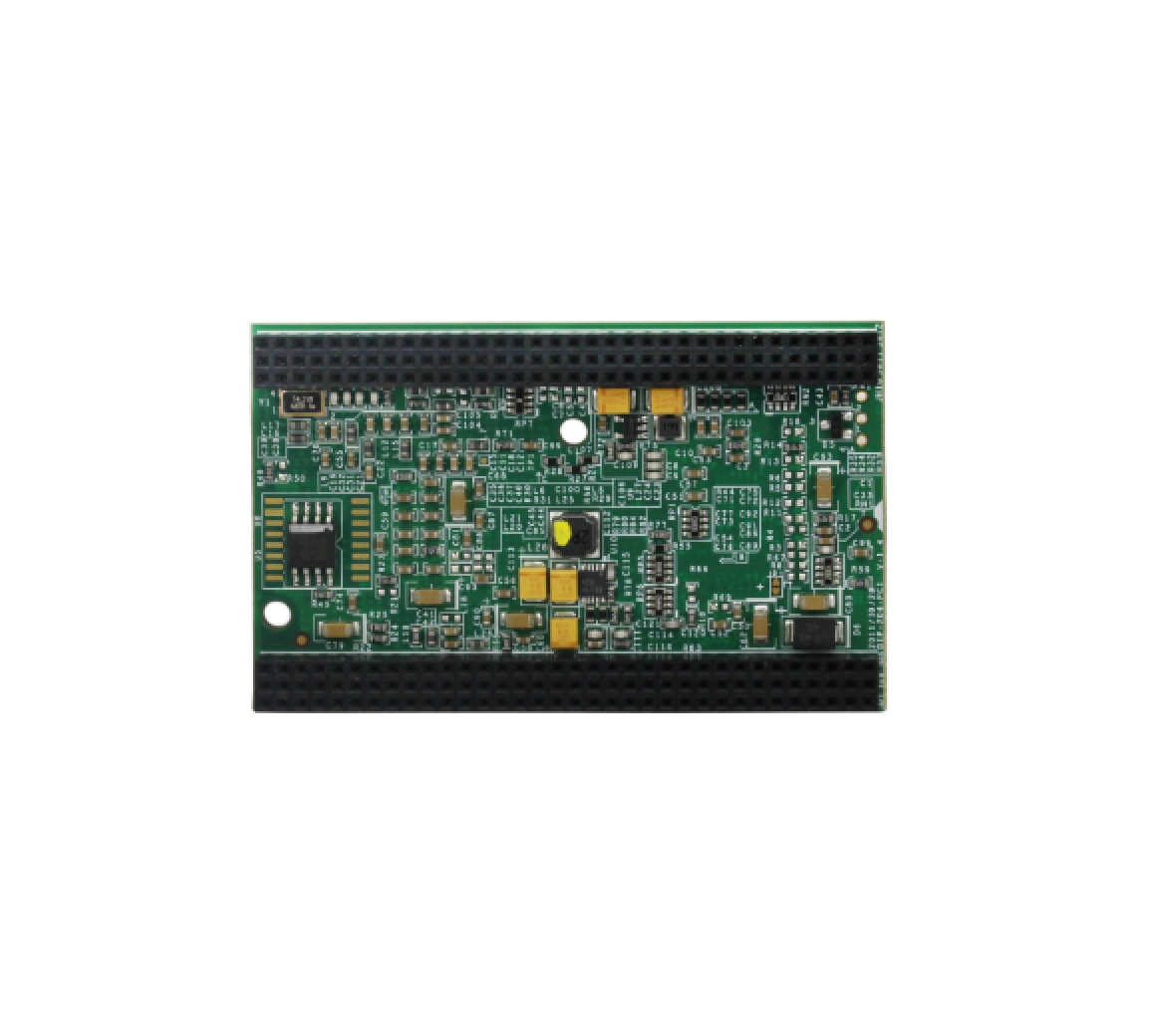

DIP-204pin-PCI Module (70 x 45mm) is designed as the kernel of your own application, which integrates the Vortex86DX CPU, onboard 256MB DDR2, BIOS, and multi I/O. The I/O interface of the DIP-204pin-PCI Module is 34-pin (1 x 34, pitch 2.0mm) connector x6 which including PCI bus, RS-232, Printer, IDE, LAN, USB, and GPIO.
For assisting users easily use our DIP-204pin- PCI Module, ICOP provides a complete development kit of DIP-204pin- PCI Development Board for DIP-204pin- PCI Module. We also supply our customers with a referential circuit diagram for easing user’s effort during the development process. Meanwhile, you can design your own based board which only equips I/O functions you need.
