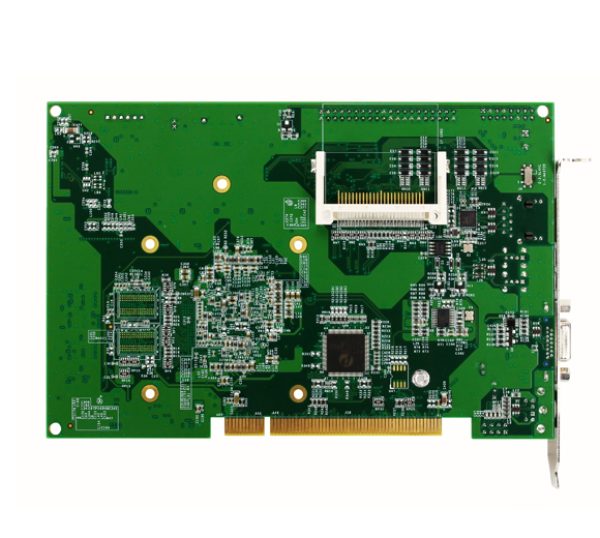

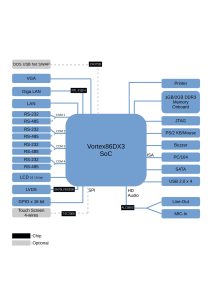

Description
| Processor | DM&P SoC CPU Vortex86DX3 – 1GHz L1:32K I-Cache, 32K D-Cache L2 Cache:512KB |
||
| RAM | 1GB/2GB DDR3 Onboard | ||
| BIOS | AMI BIOS | ||
| Bus | PC/104 Standard Compliant | ||
| Display | Integrated 2D VGA chip with dual display support (VGA + TTL /VGA + LVDS) VGA: Maximum resolution up to 1920×1080 @ 60Hz LVDS: Maximum resolution up to 1024×768 @ 60Hz Single-channel 24-bit LVDS |
||
| LAN | Integrated 10/100Mbps Ethernet x1 Realtek 8111H GbE x1 |
||
| Disk Support | SATA DOM Compact Flash (Optional) |
Onboard eMMC 1GB (Optional) | |
| I/O Interface | RS232 x4 USB (ver. 2.0) x4 Parallel x1 HD Audio |
16-bit GPIO x1 PS/2 touch controller x1 (Optional) DOS hot SWAP x1 (Optional) |
|
| Connectors | 2.54mm 26-pin box header for Parallel x1 2.54mm 20-pin box header for GPIO x1 2.54mm 10-pin box header for USB x2 2.54mm 10-pin box header for RS232 x3 2.54mm 2-pin pin header for Reset x1 2.54mm 104-pin PC/104 connector x1 2.0mm 44-pin box header for LCD x1 2.0mm 20-pin pin header for LVDS x1 2.0mm 8-pin pin header for Ethernet x1 1.25mm 4-pin wafer connector for Line-out/MIC-in x2 7-pin SATA connector for SATA DOM x1 2-pin box header for DC +5V output x1 15-pin D-Sub female connector for VGA x1 9-pin D-Sub male connector for RS232 x1 Type I/IICompact Flash slot x1 (Optional) Terminal block for DC input x1 PS/2 connector for Keyboard/Mouse x1 RJ45 connector for GbE x1 |
||
| Power Requirement | DC +5V @1000mA (Typical) | ||
| Operating Temp. | -20°Cto +70°C(Single Core) -10°Cto +60°C(Dual Core) -40°Cto +85°C (Optional for Single Core) -20°Cto +70°C(Optional for Dual Core) |
||
| Dimensions | 184 x 122mm | ||
| Weight | 180g | ||
| O/S Support | Windows 7 Windows Embedded Compact 7 Windows XP Professional Windows Embedded Standard 7 Windows Embedded 2009 |
Linux DOS POS Ready (WePOS) QNX VxWorks Free BSD |
|
Order Information:
| Part Number | Product Description | |
| VDX3-6724-V2-1G | Vortex86DX3 Half-Size CPU Module with 1GB DDR3 | |
| VDX3-6724-V2-2G | Vortex86DX3 Half-Size CPU Module with 2GB DDR3 | |
| VDX3-6724-V2-2C-1G | Vortex86DX3 Half-Size Dual Core CPU Module with 1GB DDR3 | |
| VDX3-6724-V2-2C-2G | Vortex86DX3 Half-Size Dual Core CPU Module with 2GB DDR3 | |
| VDX3-6724-V2-CF-1G | Vortex86DX3 Half-Size CPU Module with 1GB DDR3 with CF card slot |
|
| VDX3-6724-V2-2C-CF-1G | Vortex86DX3 Half-Size Dual Core CPU Module with 1GB DDR3 with CF card slot |
|
| VDX3-6724-V2-CF-2G | Vortex86DX3 Half-Size CPU Module with 2GB DDR3 with CF card slot |
|
| VDX3-6724-V2-2C-CF-2G | Vortex86DX3 Half-Size Dual Core CPU Module with 2GB DDR3 with CF card slot |
|
| CABLE-6724-SET | GPIO (2.54) x1 RS-232 (2.54) x3 Audio Line x2 |
Printer (2.54) x1 USB (2.54) x2 NET 4×2 (2.0) x1 |
| CABLE-6724-CF | RS-232 (2.54) x3 Audio Line x2 |
USB (2.54) x2 NET 4×2 (2.0) x1 |
| ICOP-0096 | Vortex86 LVDS 18-bit Converter Kit for LCD Panel Display | |
| CABLE-LVDS-30 | 18-Bit LVDS Cable | |
Additional Information:
The VDX3-6724 is a low-power CPU module which compliant with ISA standard. It takes the advantage of Vortex86DX3 1GHz x86 CPU which integrates the SATA, I2C, VGA, LVDS, PS/2, USB, HD Audio, and even the 16-bit ISA bus support.
The VDX3-6724is designed as a plug-in replacement, with backward compatibility to support legacy software to help extend the existing product life cycle without heavy re-engineering.
