Description
| Processor | DM&P SoC CPU Vorteex86DX3 – 1GHz |
| L1: 16K I-Cache, 32K D-Cache, L2: 512KB Cache | |
| RAM | 512MB/1GB/2GB DDR3 Onboard |
| BIOS | AMI BIOS |
| Watchdog Timer | Software programmable from 30.5μs sec. to 512 sec. x 2 sets |
| Display | Integrated 2D VGA chip with Dual Display Support |
| (VGA + LVDS) | |
| Share 16MB to 256MB system memory | |
| 18/24-bit Single Channel LVDS | |
| 24-bit Dual-channel LVDS (Optional) | |
| VGA: Maximum resolution up to 1920×1080 | |
| LVDS(Single) Maximum resolution up to 1024×768 | |
| LVDS(Dual) Maximum resolution up to 1920×1080 | |
| LAN | Realtek 8111H 10/100/1000Mbps |
| (Default 10/100 mode) | |
| Audio | ALC888S (HD Audio) |
| PWM | None |
| Optional Interface | None |
| I/O interface | SATA x1 |
| Enhanced IDE (UltraDMA-100/66/33) x1 | |
| Serial Port x2 | |
| USB (Ver 2.0) x4 | |
| Connector | SATA 7-pin for SATA x1 |
| 1.25mm 10-pin box header for GbE x1 | |
| Power Requirement | Single Voltage +5V@ (1.3A) |
| Weight | 110g |
| Dimensions | 95mm x 114mm (3.7 x 4.5 inches) |
| Operating Temp. | -20℃ ~ +70℃ |
| -40℃ ~ +85℃ (Optional) | |
| OS Support | DOS Windows CE7.0/XP Professional/Embedded Standard(XPE)/Embedded Standard 7 POS Ready (WePOS) Embedded Linux X-Linux QNX VxWorks FreeBSD |
Order Information:
Module:
| PART NO. | CPU | DRAM (DDR3) | Storage | Display | GbE | USB (ver. 2.0) | RS232 (TX/RX) | 16-bit GPIO | PCI Express | SPI | I²C | Audio |
| VDX3-Q7-53S | 800MHz | 512MB | SATA, SD, eMMC | VGA LVDS | 1 | 7 | 1 | 1 | 1 | 1 | 1 | HD Audio |
| VDX3-Q7-74E | 1GHz | 1GB | SATA, SD, eMMC | VGA LVDS | 1 | 7 | 1 | 1 | 1 | 1 | 1 | HD Audio |
| VDX3-Q7-75E | 1GHz | 2GB | SATA, SD, eMMC | VGA LVDS | 1 | 7 | 1 | 1 | 1 | 1 | 1 | HD Audio |
Accessories:
| Item number | Product Description |
Additional Information:

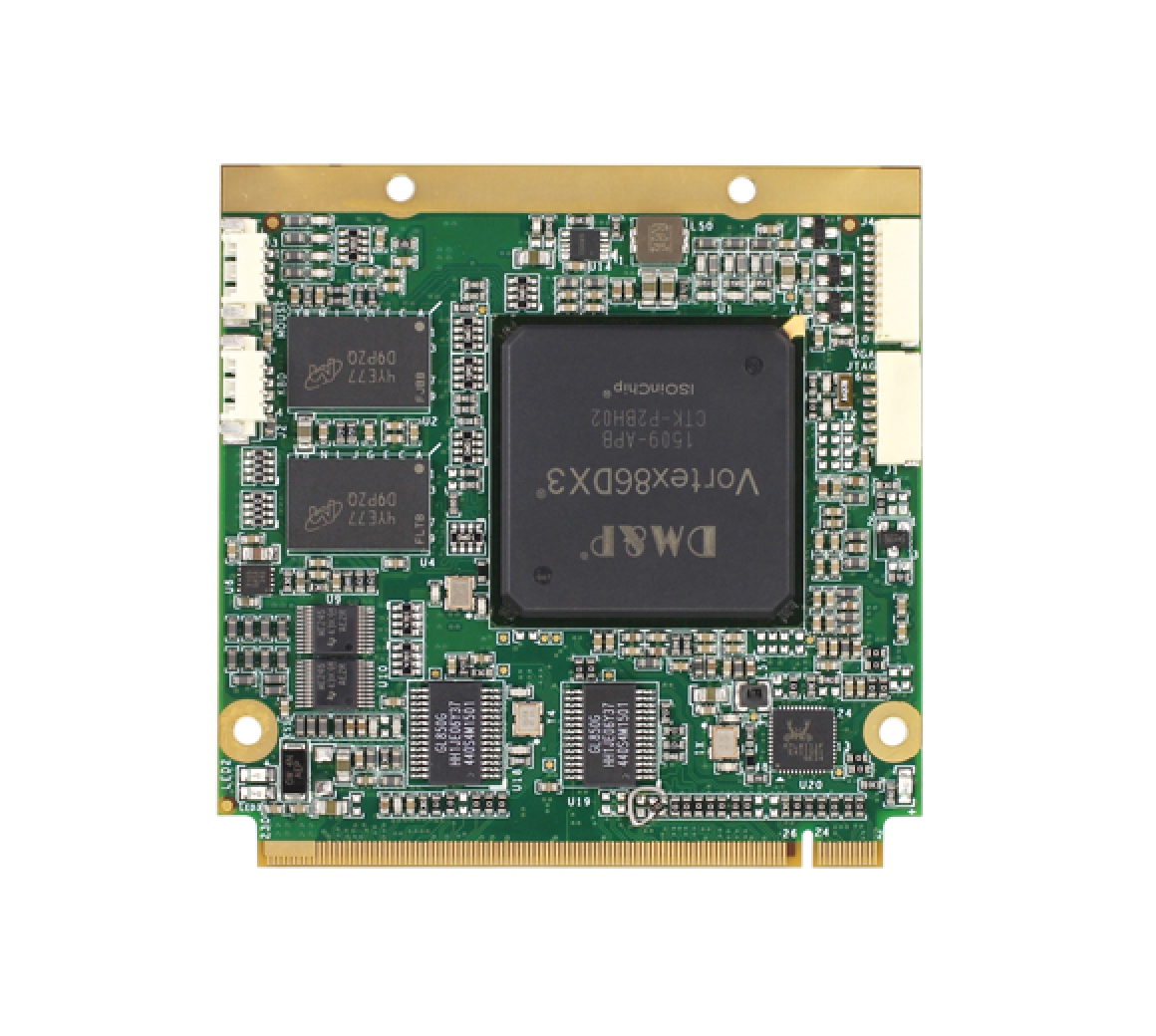

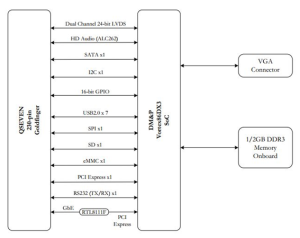

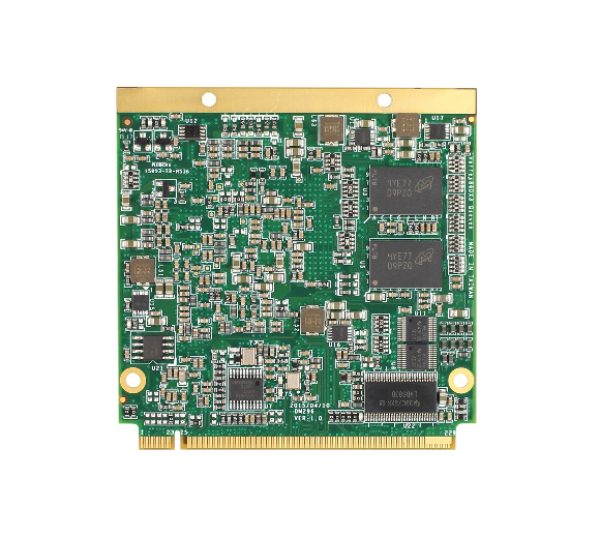

The VDX3-Q7 is a low-power CPU module that is compliant with the Q7 standard. It takes advantage of x86-structure Vortex86DX3 1GHz SoC integrates PCI Express, SATA, eMMC, SPI, I2C, GPIO, VGA, LVDS, USB, COM, GLAN, and HD Audio, etc., designed to meet a wide variety of applications.
The VDX3-Q7 is designed as a plug-in replacement, with backward compatibility to support legacy software to extend the existing product life cycle without heavy re-engineering for applications based on the QSEVEN module.
