Description
| Processor | NXP I.MX8M Mini 1.6GHz Cortex-A53 (Quad Core) | |||||
| LCD | 10.4″ SVGA TFT LCD with resolution 800 (W) x 600 (H), 400 nits and resistive touch screen | |||||
| Expansion | MiniPCIe with SIM card holder | |||||
| System Memory | 2GB/4GB LPDDR4 Onboard | |||||
| Storage | 16GB/64GB eMMC MLC Onboard | |||||
| LAN | Integrated 10 /100 / 1000 Mbps Ethernet x2 | |||||
| Disk Support | MicroSD Card Socket x1 | |||||
| I/O Interface | USB2.0 x4 (Include 1 Micro USB for OTG) SPI x1 (Reversed for pin mux settings) COM x3 (RS232/RS485 x1, RS232 x1, TX/RX x1) (COM1 reversed for pin mux settings) |
GLAN x2 15-bit GPIO x1 Audio Line-out x1 |
I2C x1 WLAN & BT x1 Audio Mic-in x1 |
|||
| Power Requirement | +12 to +24VDC Power Input | |||||
| Power Consumption |
8Watt (Typical) | |||||
| Operating Temperature | 0°C to +60°C -20°C to +70°C (Optional) |
|||||

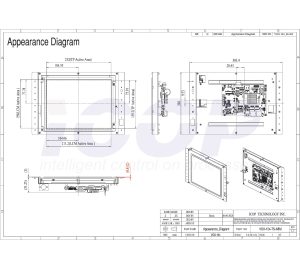

| Dimension | 303.4 x 204.0 x 52.25mm | |||||
| Weight | 1.41kg | |||||
| O/S Support | Yocto Linux, Android | |||||
Order Information:
| Part Number | Description |
| VOX-104-TS-N8M-B5GM | 10.4” OP w/iMX8M Mini/2GB DRAM/16GB eMMC Onboard/4U/3S/2GLAN/MiniPCIe/MicroSD/HD Audio/I2C/15-bit GPIO/WLAN&BT/+12~24V Input |
| VOX-104-TS-N8M-B5GMI (Build To Order) |
10.4” OP w/iMX8M Mini/2GB DRAM/16GB eMMC Onboard/4U/3S/2GLAN/MiniPCIe/MicroSD/HD Audio/I2C/15-bit GPIO/WLAN&BT/+12~24V Input/-20°C to +70°C |
| VOX-104-TS-N8M-N5GM (Build To Order) |
10.4” OP w/iMX8M Mini/2GB DRAM/16GB eMMC Onboard/4U/3S/2GLAN/MiniPCIe/MicroSD/HD Audio/I2C/15-bit GPIO/+12~24V Input |
| VOX-104-TS-N8M-N5GMI (Build To Order) |
10.4” OP w/iMX8M Mini/2GB DRAM/16GB eMMC Onboard/4U/3S/2GLAN/MiniPCIe/MicroSD/HD Audio/I2C/15-bit GPIO/+12~24V Input/-20°C to +70°C |
| VOX-104-TS-N8M-B6HM (Build To Order) |
10.4” OP w/iMX8M Mini/4GB DRAM/64GB eMMC Onboard/4U/3S/2GLAN/MiniPCIe/MicroSD/HD Audio/I2C/15-bit GPIO/WLAN&BT/+12~24V Input |
| VOX-104-TS-N8M-B6HMI (Build To Order) |
10.4” OP w/iMX8M Mini/4GB DRAM/64GB eMMC Onboard/4U/3S/2GLAN/MiniPCIe/MicroSD/HD Audio/I2C/15-bit GPIO/WLAN&BT/+12~24V Input/-20°C to +70°C |
