Description
| SoC | DM&P SoC CPU Vortex86SX- 300MHz Real-Time Clock with Lithium Battery Backup |
| Cache | L1:16K I-Cache, 16K D-Cache |
| BIOS | AMI BIOS |
| System Memory | 128/256MB DDR2 Onboard |
| Watchdog Timer 0 & 1 Sets |
Software programmable from 30.5μ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D) |
| LAN | Integrated 10/100Mbps Ethernet |
| Flash Disk Support | Compact Flash Type I/II Onboard 2MB SPI Flash Disk |
| I/O Interface | RS-232 port x4 (TX /RX x3) USB port (Ver2.0) x3 10/100Mbps Ethernet port x1 |
| Connectors | 1.25mm 3-pin wafer for RS-232 x3 1.25mm 5-pin wafer for USB x1 1.25mm 4-pin wafer for Keyboard x1 1.25mm 6-pin wafer for JTAG x1 Type I/II Compact Flash slot x1 |
| Power Requirement | Single Voltage +5V @ 320mA |
| Weight | 24g |
| Board Size | 64 x 46mm (2.52 x 1.81 inches) |
| Operating Temperature | -20°C ~ +70°C -40°C ~ +85°C (Optional) |
Order Information:
| Part Number | Description |

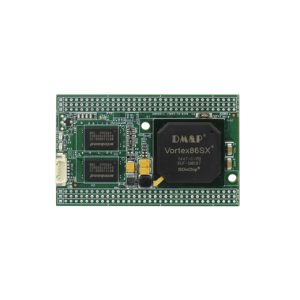

| VSX-6101-V2 | Vortex86SX DIP 48pin CPU Module with 128MB DDR2 |
| VSX-6100-EVB | Vortex86SX DIP 48/68pin CPU Module Development Board |
Additional Information:
The VSX-6101-V2 family of low-power x86 embedded controller is designed to meet DIP 48pin CPU module specification, and integrated with the following features.
The VSX-6101-V2 DIP 48pin controller is designed with backward compatibility in mind, to provide a migration path for projects facing end-of-life challenges with their existing x86 based controller. The VSX-6101-V2 family of controllers is designed as a plug-in replacement, with backward compatibility to support legacy software to help extend the existing product life cycle without heavy re-engineering.
VSX-6101-V2 is suitable for a broad range of data-acquisition, Industrial automation, Process control, Automotive controller, AVL, Intelligent Vehicle management device, Medical device, Human-machine interface, Robotics, machinery control, And more…application that required small footprint, low-power and low-cost hardware with an open industry standard such as DIP 48pin module.
