Description
| SoC | DM&P SoC CPU Vortex86SX- 300MHz Real-Time Clock with Lithium Battery Backup |
| Cache | L1:16K I-Cache, 16K D-Cache |
| BIOS | AMI BIOS |
| Bus Interface | ISA interface |
| System Memory | 256MB DDR2 onboard |
| Watchdog Timer | Software programmable from 30.5 us to 512 seconds x2 sets(Watchdog 1 fully compatible with M6117D) |
| I /O Interface | Enhanced IDE port x1 RS-232 port x5 (TX RX x1) USB port x4 16-bit GPIO port x2 |
| Connectors | 1.25mm Ø 6-pin Wafer for JTAG x1 2.00 mm Ø 34-pin header for ISA & Multi-I/O x6 |
| Flash Disk Support | Onboard 2MB SPI Flash Disk (Driver: A) |
| Power Requirement | Single Voltage +5V @ 260mA |
| Dimension | 70 X 45mm (2.75 x 1.77 inches) |
| Weight | 23g |
| Operating Temperature | -20°C ~ +70°C -40°C ~ +85°C (Optional) |
Order Information:
| Part Number | Description |

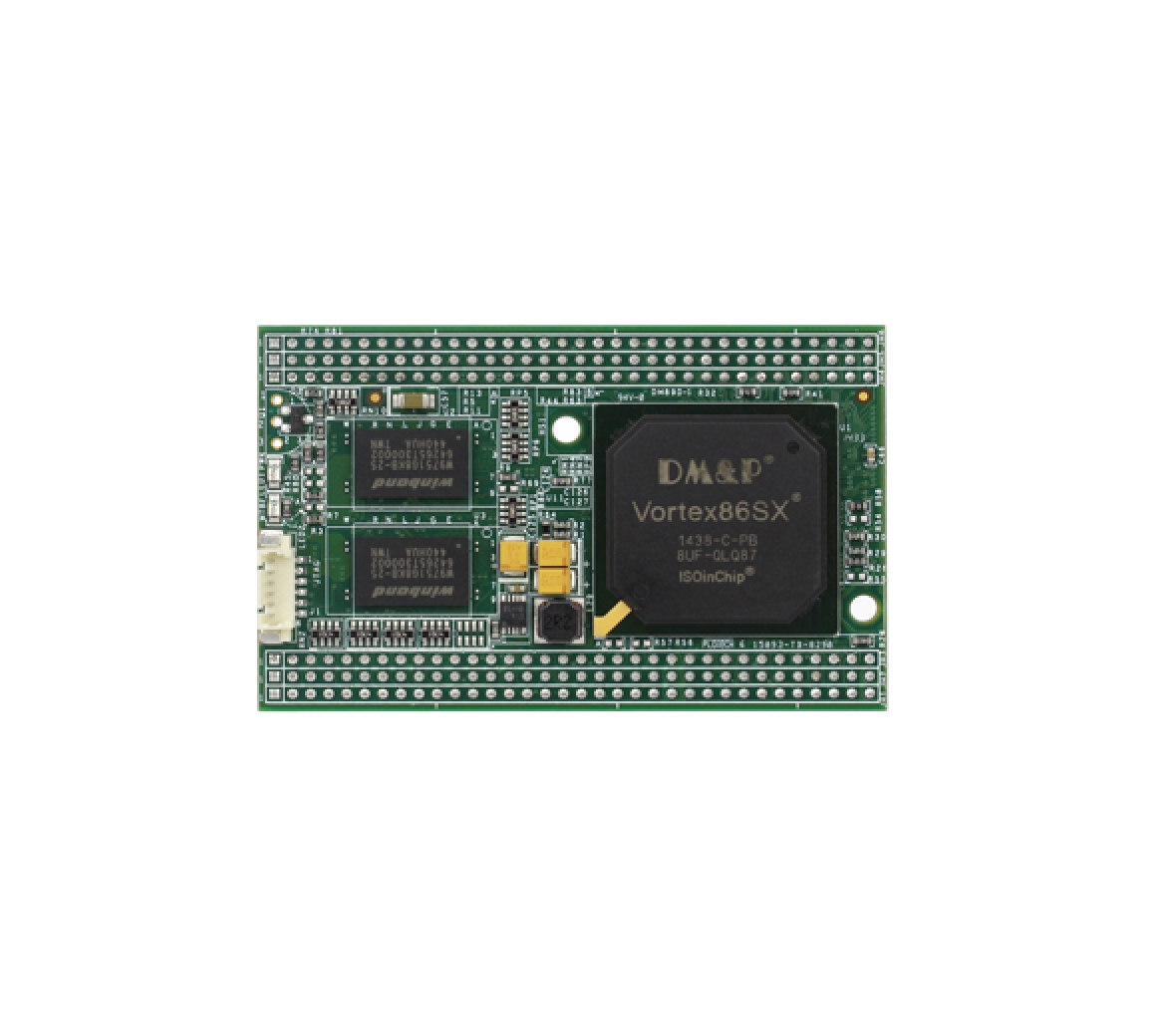

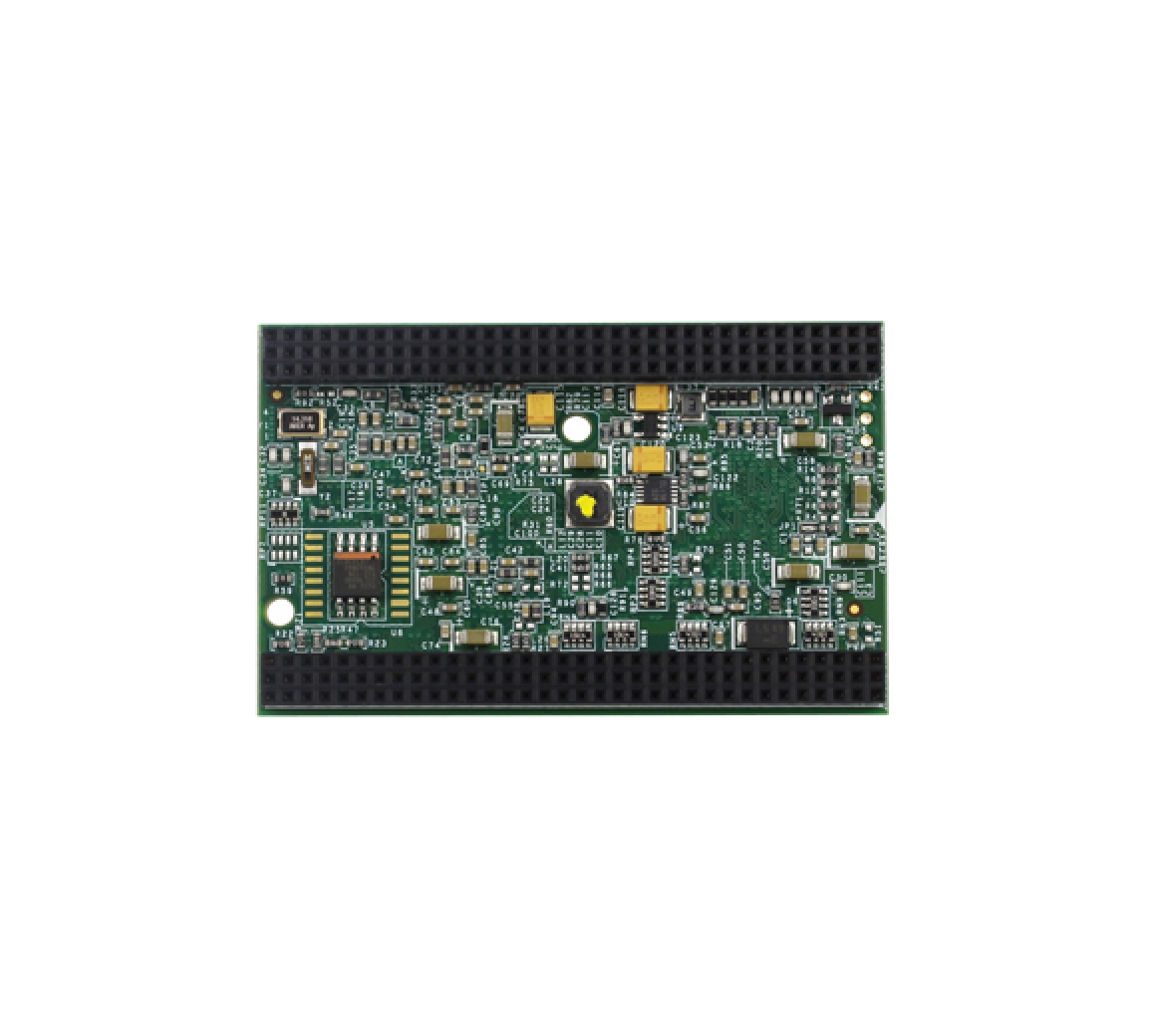

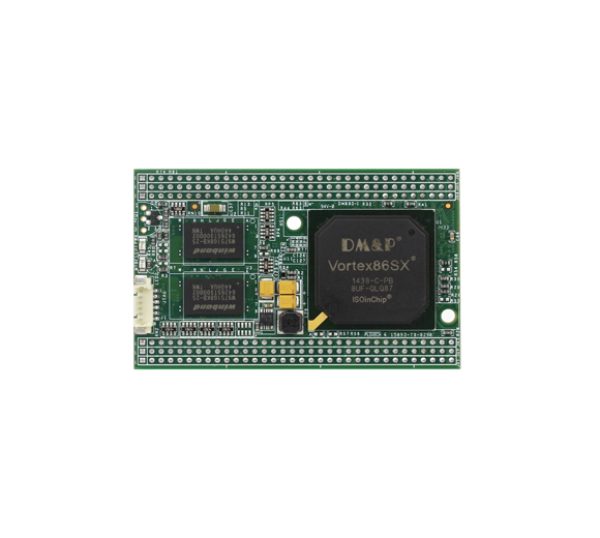

| VSX-DIP-ISA-V2 | Vortex86SX DIP-204pin-ISA CPU Module with 256MB DDR2 |
Additional Information:
The VSX-DIP-ISA-V2 family of low-power x86 embedded controller is designed to meet DIP-204pin-ISA specification, and integrated with the following features.
VSX-DIP-ISA-V2 is suitable for a broad range of data-acquisition, Industrial automation, Process control, Automotive controller, AVL, Intelligent Vehicle management device, Medical device, Human-machine interface, Robotics, machinery control, And more…application that required a small footprint, low-power and low-cost hardware with an open industry standard such as DIP-204pin-ISA.
DIP-204pin-ISA module, measured at only 70 x 45mm, is designed particularly as the kernel for the diverse expandable applications. Through 6 rows of 34pin connector, DIP-204pin-ISA module is able to provide multiple functions, such as PCI BUS, RS-232, IDE, LAN, USB, and GPIO.
To assist users in easily adapt DIP-204pin-ISA Module into their applications, ICOP offers the complete development board for DIP-204pin-ISA Module. ICOP also supplies customers with the referential circuit diagram reducing their time and effort during the development process.
