Description
| SoC | DM&P SoC CPU Vortex86SX- 300MHz Real Time Clock with Lithium Battery Backup |
| Cache | L1:16K I-Cache, 16K D-Cache |
| Bus | PCI interface |
| BIOS | AMI BIOS |
| System Memory | 128/256MB DDR2 Onboard |
| Watchdog Timer 0 & 1 Sets |
Software programmable from 30.5μ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D) |
| LAN | Integrated 10/100Mbps Ethernet |
| Flash Disk Support | Onboard 2MB SPI Flash Disk |
| I/O Interface | Enhanced IDE port (UltraDMA-100/66/33) x1 RS-232 port x5 (TX/RX x1) USB port x4 16-bit GPIO port x2 |
| Connectors | 1.25mm 6-pin wafer for JTAG x1 |
| Power Requirement | Single Voltage +5V @ 280mA |
| Weight | 23g |
| Board Size | 70 x 45mm (2.75 x 1.77 inches) |
| Operating Temperature | -20°C ~ +70°C -40°C ~ +85°C (Optional) |
Order Information:
| Part Number | Description |
| VSX-DIP-PCI-V2 | Vortex86SX DIP-204pin-PCI CPU Module with 128MB DDR2 |
Additional Information:

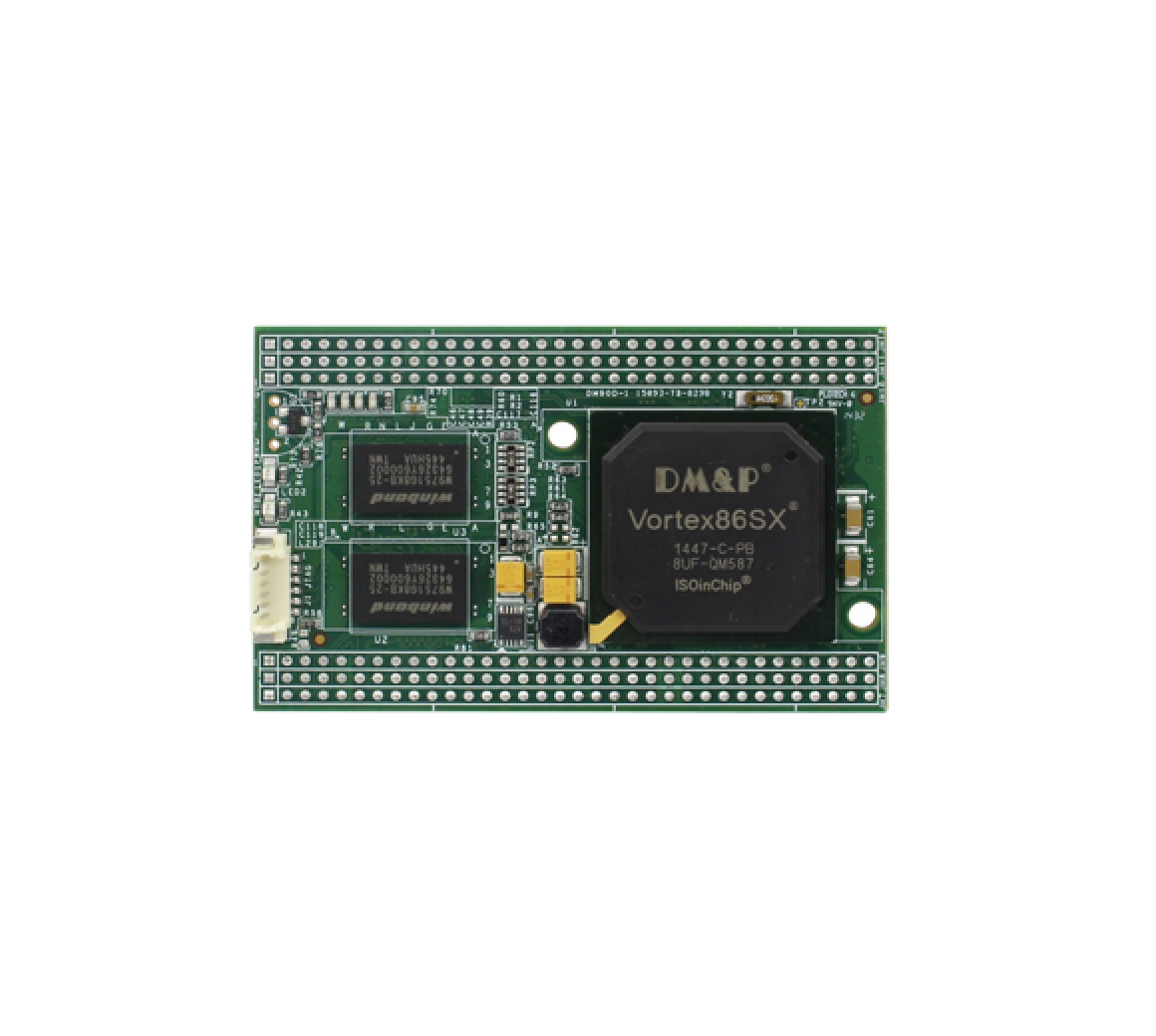

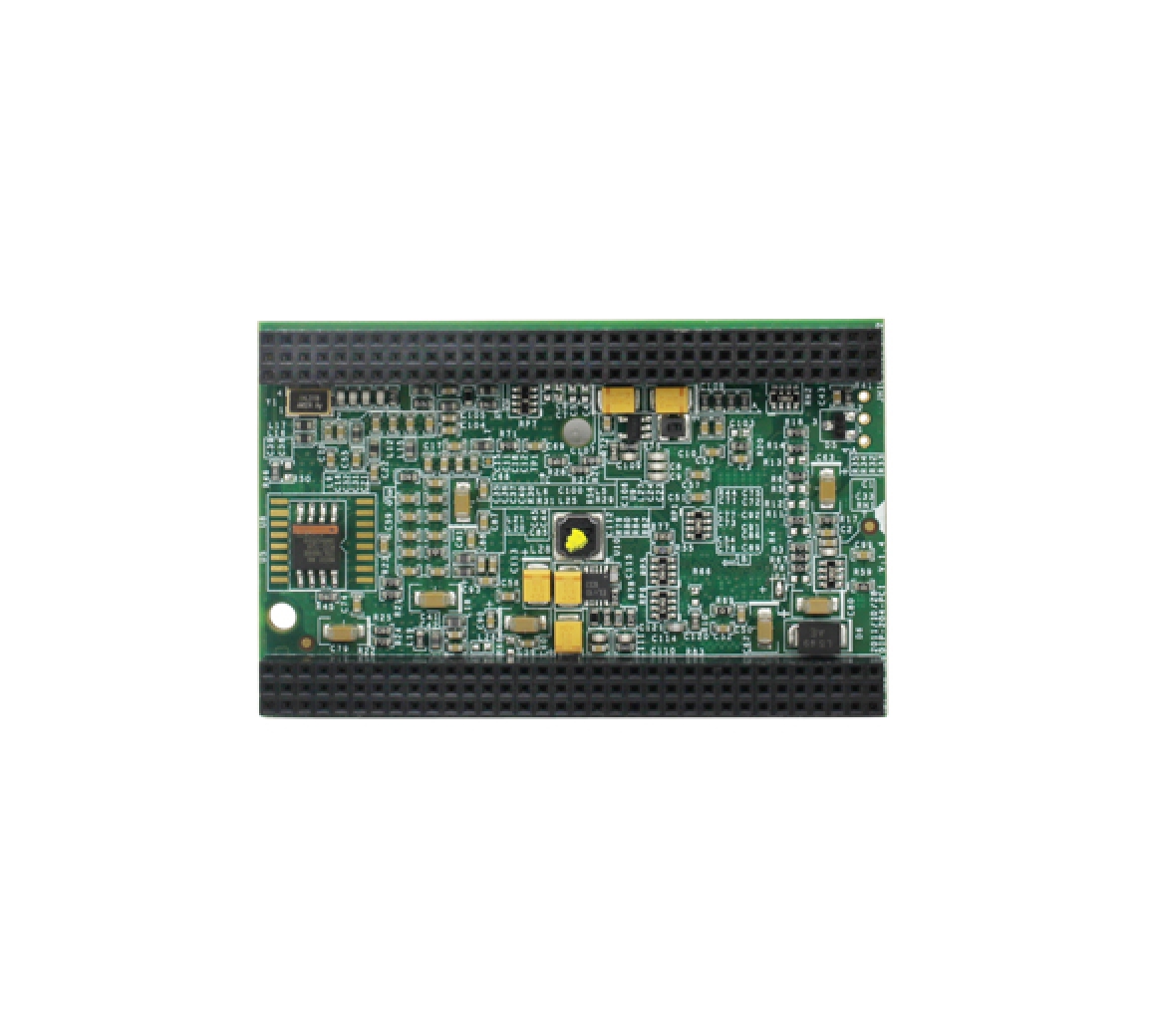

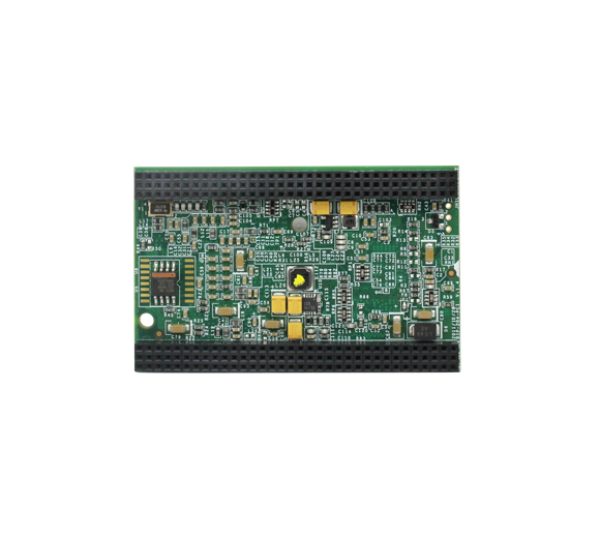

DIP-204pin-PCI Module (70x45mm) is designed as the kernel of your own application, which integrates the Vortex86SX CPU, onboard 128MB DDR2, BIOS, and multi I/O. The I/O interface of the DIP-204pin-PCI Module is 34-pin (1×34, pitch 2.0mm) connector x6 which including PCI bus, RS-232, IDE, LAN, USB, and GPIO.
For assisting users easily use our DIP-204pin-PCI Module, ICOP provides a complete development kit of the DIP-204pin-PCI Development Board for the DIP-204pin-PCI Module.
We also supply our customers with a referential circuit diagram for easing user’s effort during the development process. Meanwhile, you can design your own based board which only equips I/O functions you need.
