| Technical Data | GPU25 |
|---|---|
| Dimension L x W x H (Self-propelled) | N/A |
| Dimension L x W x H (Tow Type) | 2300 x 1900 x 1700 mm |
| Engine | 3 cylinders |
| Weight (Self Propelled) | N/A |
| Weight (Tow type) | 1800 kg |
| Power KVA | 25 |
| AC Voltage | 115V /200 V, 3 -Phase |
| DC Voltage | 28 V |
| Output | Single |
| Frequency / Frequency Regulation | 400 Hz |
| Operating Temperatures | -30 0C to 50 0C (as a Standard) |

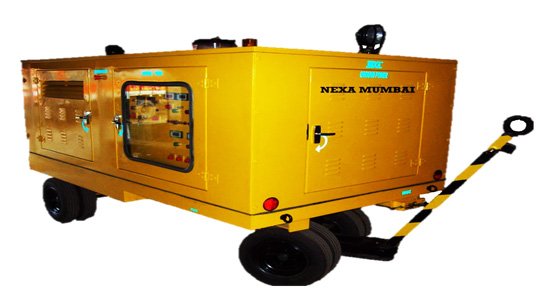

| Technical Data | GPU40 |
|---|---|
| Dimension L x W x H (Self-propelled) | 3800 x 1900 x 1700 mm |
| Dimension L x W x H (Tow Type) | 2600 x 1900 x 1700 mm |
| Engine | 4 cylinders |
| Weight (Self Propelled) | 3500 kg |
| Weight (Tow type) | 2200 kg |
| Power KVA | 40 |
| AC Voltage | 115V /200 V, 3 -Phase |
| DC Voltage | 28 V |
| Output | Single/Double |
| Frequency / Frequency Regulation | 400 Hz |
| Operating Temperatures | -30 0C to 50 0C (as a Standard) |
| Technical Data | GPU90 |
|---|---|
| Dimension L x W x H (Self-propelled) | 3800 x 1900 x 1700 mm |
| Dimension L x W x H (Tow Type) | 2600 x 1900 x 1700 mm |
| Engine | 4 cylinders |
| Weight (Self Propelled) | 3500 kg |
| Weight (Tow type) | 2200 kg |
| Power KVA | 90 |
| AC Voltage | 115V /200 V, 3 -Phase |
| DC Voltage | 28 V |
| Output | Single/Double |
| Frequency / Frequency Regulation | 400 Hz |
| Operating Temperatures | -30 0C to 50 0C (as a Standard) |

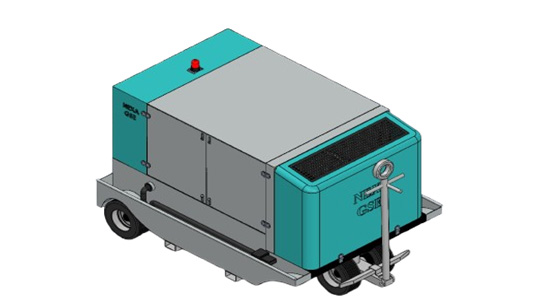

| Technical Data | GPU140 |
|---|---|
| Dimension L x W x H (Self-propelled) | N/A |
| Dimension L x W x H (Tow Type) | 2800 x 1900 x 1700 mm |
| Engine | 6 cylinders |
| Weight (Self Propelled) | N/A |
| Weight (Tow type) | 2500 kg |
| Power KVA | 140 |
| AC Voltage | 115V /200 V, 3 -Phase |
| DC Voltage | 28 V |
| Output | Single/Double |
| Frequency / Frequency Regulation | 400 Hz |
| Operating Temperatures | -30 0C to 50 0C (as a Standard) |
| Technical Data | GPU180 |
|---|---|
| Dimension L x W x H (Self-propelled) | 2800 x 1900 x 1700 mm |
| Dimension L x W x H (Tow Type) | 2800 x 1900 x 1700 mm |
| Engine | 6 cylinders |
| Weight (Self Propelled) | N/A |
| Weight (Tow type) | 2500 kg |
| Power KVA | 180 |
| AC Voltage | 115V /200 V, 3 -Phase |
| DC Voltage | 28 V |
| Output | Single/Double |
| Frequency / Frequency Regulation | 400 Hz |
| Operating Temperatures | -30 0C to 50 0C (as a Standard) |
