Stainless Steel Pipe Bends,Pipe Bends Suppliers,Pipe Bends, Piggable Bends, U-bends, Return Bends, Miter Bends Manufacturers in India
Carbon Steel Pipe Bends, Alloy Steel Pipe Bends, Stainless Steel Buttweld Pipe Bends,ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 Suppliers in India
Stainless Steel Pipe Bends, Alloy Steel Piggable Bends, ASME B16.9 Carbon Steel Induction Bend,Carbon, Alloy, Stainless Steel Bends – 3D, 4D, 5D, 6D, 8D, 10D Manufacturers & Suppliers in India

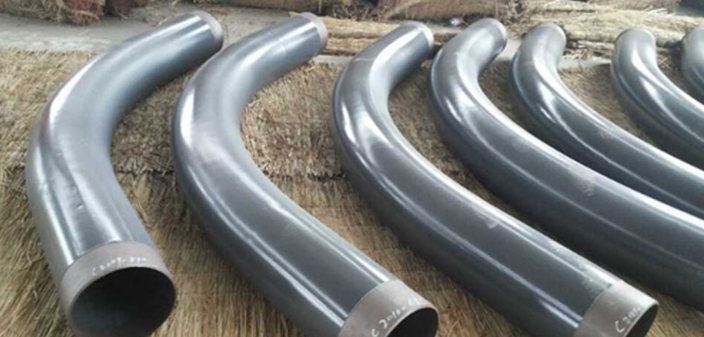

Steel Pipe Bends/Piggable Bends Production Range
| Outside Diameter: | Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″) |
|---|---|
| Type: | Steel Pipe Bends/Piggable Bends |
| Wall Thickness: | 3mm-40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Product Angle: | 0° – 180° |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
Manufacturing Standards
- ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
- DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
- EN: EN10253-1, EN10253-2
| ASTM A403 | ASME SA403 - Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
We Have Ready Stock Of All Different Types Of Pipe Bends
Stainless Steel Pipe Bends
Carbon Steel Pipe Bends
Alloy Steel Pipe Bends
Duplex Steel Pipe Bends
Pipe Bends Material Grades
| Stainless Steel Pipe Bends : | ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
|---|---|
| Carbon Steel Pipe Bends : | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Pipe Bends : | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Pipe Bends : | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Duplex Steel Pipe Bends : | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
| Nickel Alloy Pipe Bends : | ASTM / ASME SB 336 UNS 2200 (NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 (INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276 ) |
