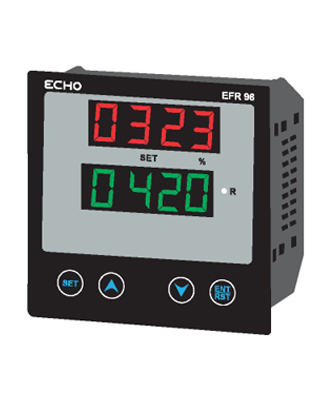

MODEL

• Dimensions (HxWxD) mm : 96 x 96 x 52
• Panel Cutout (mm) : 92 x 92

INPUT

• Input Signal : 5AMP from CBCT

OUTPUT

• 1 Relay (NO-C-NC) 5A, 230V AC (resistive load)

SPECIFICATION

• Accuracy : Class 0.5
• Power Supply : 85 to 270V AC, 50/60Hz, Approx. 4VA
• Note: RS-485 MODBUS available as per request
