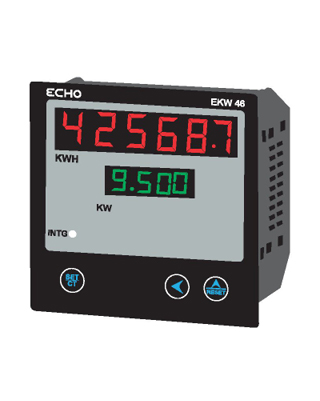

ESPL EKW-46
MODEL
- Dimensions (HxWxD) mm : 96 x 96 x 50
- Panel Cutout (mm) : 92 x 92
INPUT
- Input Signal : 3Ø 4 Wire 30-300V AC (L-N)
- Voltage : 50V-520V AC (P-P)
- Current : 5/5 to 4000/5A AC
SPECIFICATION
- Reset : By front Keypad
- Measuring Range : 0.000 to 9999 kW (Active power), 0 to
999999 kWh (Active energy)
- Accuracy : Class 0.5
- Power Supply : 230V AC ± 10%, 50Hz

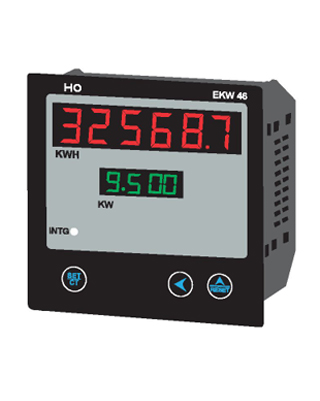

ESPL EKW-46
MODEL
- Dimensions (HxWxD) mm : 96 x 96 x 52
- Panel Cutout (mm) : 92 x 92
INPUT
- Input Signal : 1Ø 2 Wire 30-300V AC (L-N)
- Current : 5/5 to 4000/5A AC
SPECIFICATION
- Reset : By front Keypad
- Measuring Range : 0 to 999999 kWh (Active Energy), 0.000
to 9999 kW (Active power)
- Accuracy : Class 0.5
- Power Supply : 230V AC ± 10%, 50Hz
