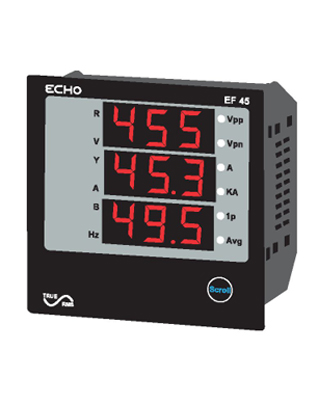

MODEL

• Dimensions (HxWxD) mm : 96 x 96 x 50
• Pixel Cutout (mm) : 92 x 92

DISPLAY INPUT:

• Input Signal - 30 4 Wire / 30 3Wire / 19 2 Wire
• Voltage - 300V AC (L-N) / 520V AC (P-P)
• Current - 5/5A to 6000/5A CT Ratio Selectable

PARAMETER:

• Voltage (P-P), Voltage (P-N), Average Voltage (P-P), Average Current (R,Y & B), Average Voltage (P-N)
• Line Current (R,Y & B), Frequency, RPM, Load Hour, No Load Hour

SPECIFICATION:

• Accuracy : Class 1.0
• Power Supply : 230V AC + 10% 50Hz
