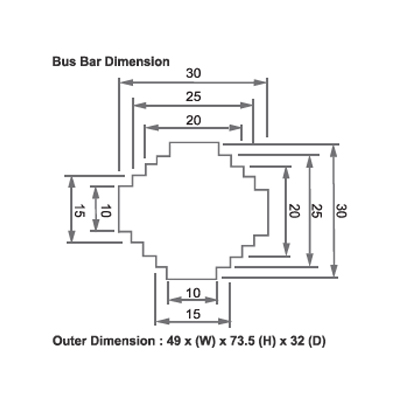

ESPL 30
| MODEL |
RATIO |
CLASS |
1 VA |
2.5 VA |
5 VA |
| ESPL-30-60/5A |
60/5A |
CLASS |
3 |
- |
- |
| ESPL-30-75/5A |
75/5A |
CLASS |
3 |
- |
- |
| ESPL-30-80/5A |
80/5A |
CLASS |
3 |
- |
- |
| ESPL-30-100/5A |
100/5A |
CLASS |
1 |
- |
- |
| ESPL-30-125/5A |
125/5A |
CLASS |
1 |
- |
- |
| ESPL-30-150/5A |
150/5A |
CLASS |
1 |
3 |
- |
| ESPL-30-200/5A |
200/5A |
CLASS |
- |
1 |
- |
| ESPL-30-250/5A |
250/5A |
CLASS |
- |
1 |
- |
| ESPL-30-300/5A |
300/5A |
CLASS |
- |
1 |
3 |
| ESPL-30-400/5A |
400/5A |
CLASS |
- |
- |
1 |
| ESPL-30-500/5A |
500/5A |
CLASS |
- |
- |
1 |
| ESPL-30-600/5A |
600/5A |
CLASS |
- |
- |
1 |

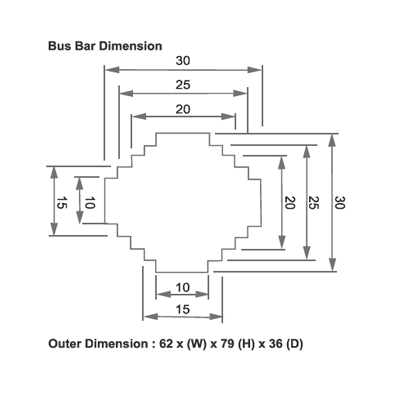

ESPL 33
| MODEL |
RATIO |
CLASS |
1.25 VA |
2.5 VA |
5 VA |
10 VA |
| ESPL-33 |
50/5A |
CLASS |
3 |
- |
- |
- |
|
60/5A |
CLASS |
1 |
- |
- |
- |
|
75/5A |
CLASS |
1 |
- |
- |
- |
|
80/5A |
CLASS |
1 |
- |
- |
- |
|
100/5A |
CLASS |
- |
- |
1 |
- |
|
125/5A |
CLASS |
- |
- |
1 |
- |
|
150/5A |
CLASS |
- |
- |
1 |
- |
|
200/5A |
CLASS |
- |
- |
1 |
- |
|
250/5A |
CLASS |
- |
- |
- |
1 |
|
300/5A |
CLASS |
- |
- |
- |
1 |
|
400/5A |
CLASS |
- |
- |
- |
1 |
|
500/5A |
CLASS |
- |
- |
- |
1 |
|
600/5A |
CLASS |
- |
- |
- |
1 |
|
750/5A |
CLASS |
- |
- |
- |
1 |

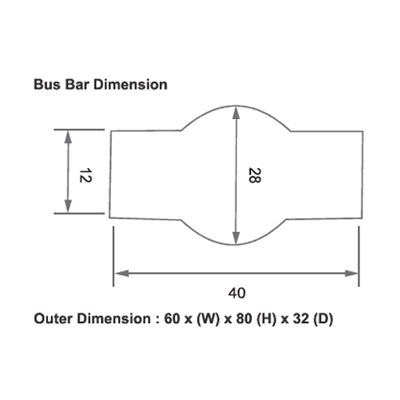

ESPL 40
| MODEL |
RATIO |
CLASS |
2.5 VA |
5 VA |
7.5 VA |
| ESPL-40 |
150/5A |
CLASS |
3 |
- |
- |
|
200/5A |
CLASS |
1 |
- |
- |
|
250/5A |
CLASS |
1 |
- |
- |
|
300/5A |
CLASS |
1 |
3 |
- |
|
400/5A |
CLASS |
- |
1 |
3 |
|
500/5A |
CLASS |
- |
0.5 |
1 |
|
600/5A |
CLASS |
- |
0.5 |
1 |
|
750/5A |
CLASS |
- |
0.5 |
1 |
|
800/5A |
CLASS |
- |
0.5 |
1 |

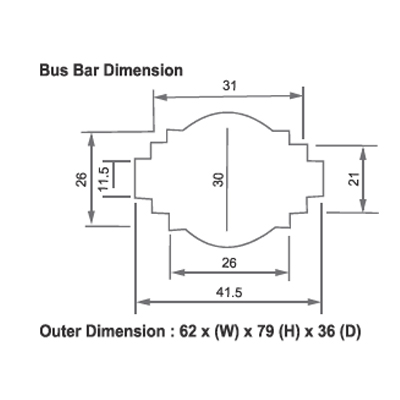

ESPL 44
| MODEL |
Class 1 |
| Burden (VA) |
| ESPL 44-150/5A |
2.5 |
| ESPL 44-200/5A |
2.5 |
| ESPL 44-250/5A |
2.5 |
| ESPL 44-300/5A |
5 |
| ESPL 44-400/5A |
5 |
| ESPL 44-500/5A |
5 |
| ESPL 44-600/5A |
5 |
| ESPL 44-750/5A |
5 |
| ESPL 44-800/5A |
5 |

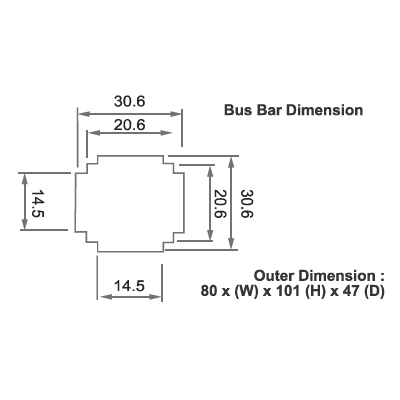

ESPL 50
| MODEL |
RATIO |
CLASS |
10 VA |
| ESPL-50 |
125/5A |
CLASS |
0.5 |
| 150/5A |
CLASS |
0.5 |
| 200/5A |
CLASS |
0.5 |
| 250/5A |
CLASS |
0.5 |
| 300/5A |
CLASS |
0.5 |
| 400/5A |
CLASS |
0.5 |

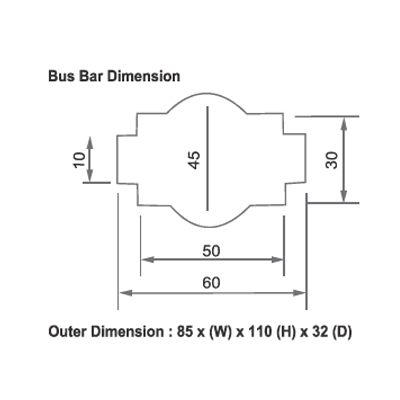

ESPL 60
| MODEL |
Class 1
Burden (VA) |
Class 0.5
Burden (VA) |
| ESPL 60-200/5A |
2.5 |
|
|
|
| ESPL 60-250/5A |
2.5 |
5 |
|
|
| ESPL 60-300/5A |
2.5 |
5 |
|
|
| ESPL 60-400/5A |
2.5 |
10 |
|
|
| ESPL 60-500/5A |
5 |
7.5 |
15 |
10 |
| ESPL 60-600/5A |
5 |
10 |
15 |
10 |
| ESPL 60-750/5A |
5 |
10 |
15 |
10 |
| ESPL 60-800/5A |
5 |
10 |
15 |
10 |
| ESPL 60-1000/5A |
10 |
15 |
15 |
15 |
| ESPL 60-1200/5A |
10 |
15 |
30 |
15 |
| ESPL 60-1250/5A |
10 |
15 |
30 |
15 |
| ESPL 60-1500/5A |
10 |
15 |
30 |
15 |
| ESPL 60-1600/5A |
10 |
15 |
30 |
15 |
ESPL 80
| MODEL |
Class 1
Burden (VA) |
Class 0.5
Burden (VA) |
| ESPL 80-400/5A |
2.5 |
5 |
5 |
5 |
| ESPL 80-500/5A |
2.5 |
5 |
7.5 |
5 |
| ESPL 80-600/5A |
2.5 |
5 |
10 |
5 |
| ESPL 80-750/5A |
2.5 |
5 |
10 |
10 |
| ESPL 80-800/5A |
5 |
7.5 |
10 |
10 |
| ESPL 80-1000/5A |
5 |
7.5 |
10 |
10 |
| ESPL 80-1200/5A |
5 |
7.5 |
10 |
10 |
| ESPL 80-1250/5A |
5 |
7.5 |
10 |
10 |
| ESPL 80-1500/5A |
5 |
10 |
15 |
10 |
| ESPL 80-1600/5A |
5 |
10 |
15 |
10 |
| ESPL 80-2000/5A |
5 |
10 |
15 |
10 |

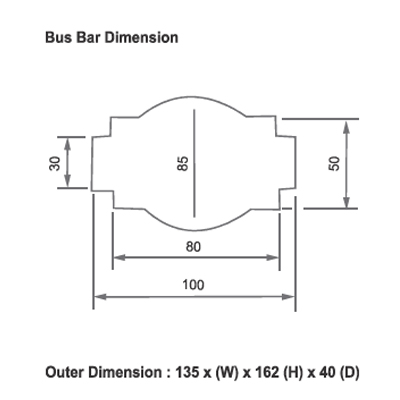

ESPL 100
| MODEL |
Class 1
Burden (VA) |
Class 0.5
Burden (VA) |
| ESPL 100-400/5A |
5 |
|
|
|
|
| ESPL 100-500/5A |
5 |
|
|
|
|
| ESPL 100-600/5A |
5 |
10 |
|
10 |
|
| ESPL 100-750/5A |
5 |
10 |
|
10 |
|
| ESPL 100-800/5A |
5 |
10 |
|
10 |
|
| ESPL 100-1000/5A |
5 |
10 |
15 |
10 |
15 |
| ESPL 100-1200/5A |
5 |
10 |
15 |
10 |
15 |
| ESPL 100-1250/5A |
5 |
10 |
15 |
10 |
15 |
| ESPL 100-1500/5A |
5 |
10 |
15 |
10 |
15 |
| ESPL 100-1600/5A |
5 |
10 |
15 |
10 |
15 |
| ESPL 100-2000/5A |
5 |
10 |
15 |
10 |
15 |
| ESPL 100-3000/5A |
5 |
10 |
15 |
10 |
15 |
| ESPL 100-4000/5A |
5 |
10 |
15 |
10 |
15 |
